Shapes of organic molecules; σ and π bonds

Specification Reference Organic Chemistry, An introduction to AS level organic chemistry 13.3

Quick Notes

  • Organic molecules can be straight-chained, branched, or cyclic.
  • Bond angles and shape depend on hybridisation of carbon atoms:
    • sp → linear (bond angle of 180°)
    • sp² → trigonal planar (bond angles of 120°)
    • sp³ → tetrahedral (bond angles of 109.5°)
  • σ (sigma) bonds form by end-on orbital overlap
  • π (pi) bonds form by sideways overlap of p orbitals
  • π bonds restrict rotation and are weaker than σ bonds.
  • Molecules like ethene are planar due to sp² hybridisation

Full Notes

Molecular Types: Straight-Chain, Branched, and Cyclic

Organic molecules can be classified by their carbon backbone:

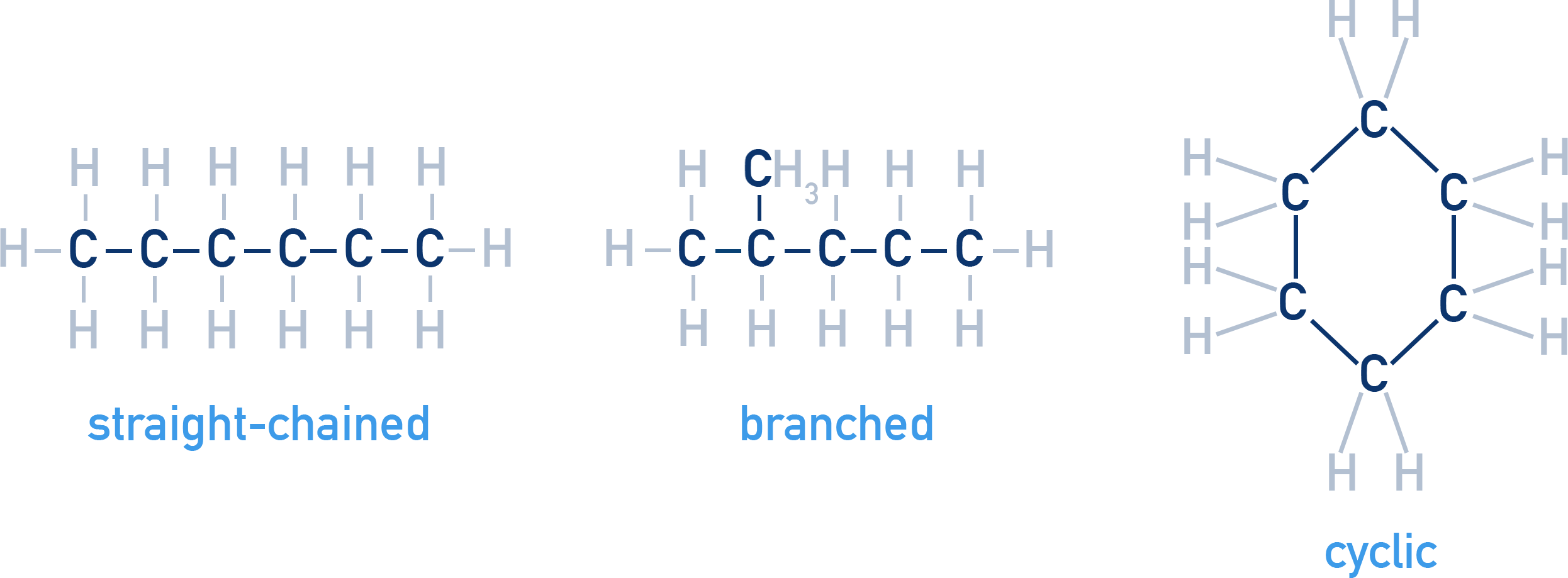

CIE A-Level Chemistry diagram showing straight-chain, branched, and cyclic carbon backbones.

These variations can affect physical properties and reactivity.

Hybridisation and Molecular Shape

Hybridisation is the mixing of atomic orbitals to form new, equivalent hybrid orbitals. Carbon is often used as an example for the forming of hybrid orbitals as it reacts.

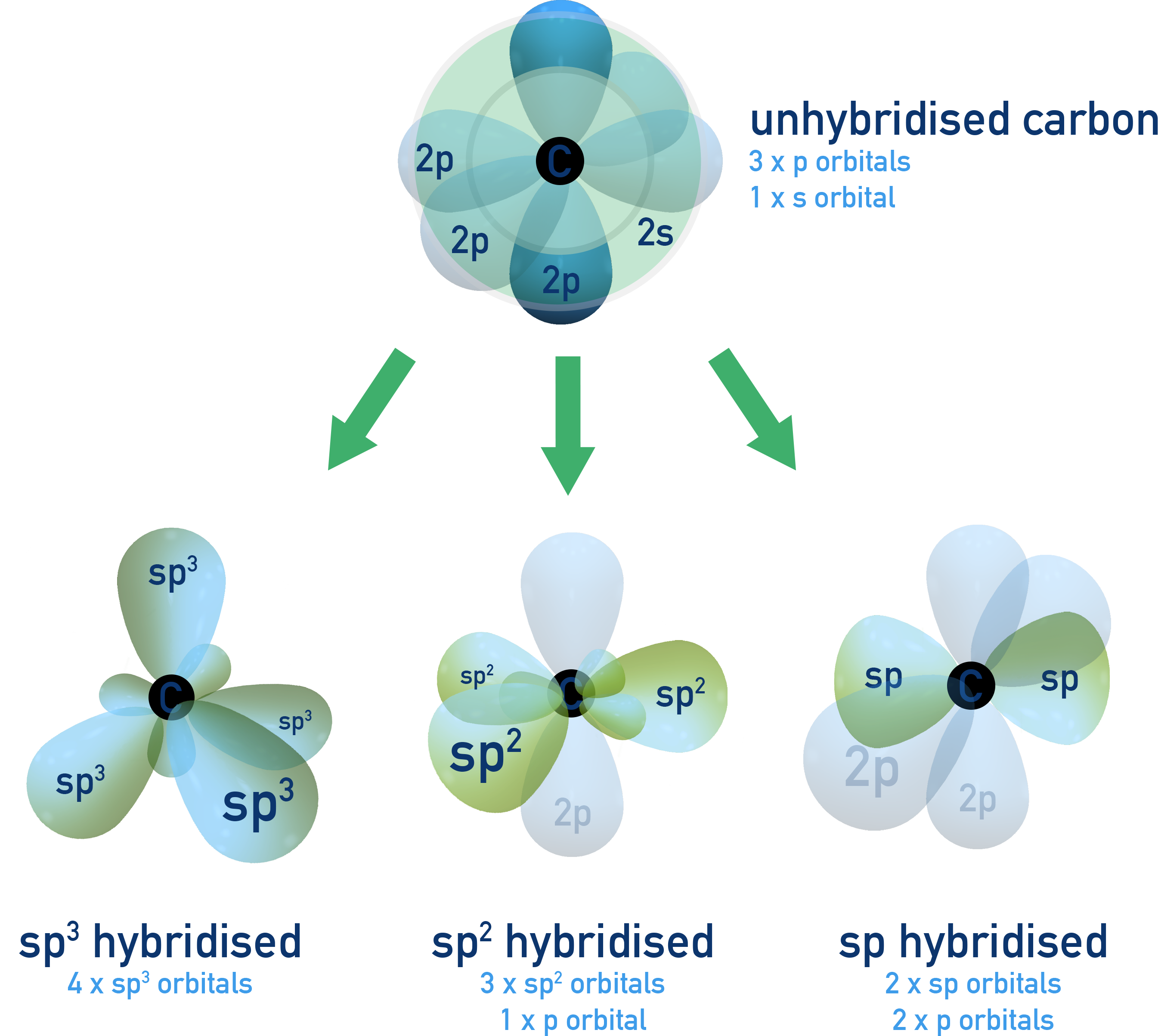

CIE A-Level Chemistry diagram showing sp, sp2 and sp3 hybridisation of carbon orbitals.

Carbon atoms can form different shapes depending on their hybridisation:

Hybridisation Bonding Shape Bond Angle
sp Found in molecules with triple bonds (C≡C) Linear 180°
sp² Found in molecules with double bonds (C=C) Trigonal planar 120°
sp³ Found in single-bonded carbon atoms Tetrahedral 109.5°

Sigma (σ) and Pi (π) Bonds

σ and π bonding has been covered in more detail here

All single covalent bonds are σ bonds, with double and triple bonds also containing π bonds:

σ (Sigma) Bonds

Formed by end-on overlap of orbitals (e.g. s–s, s–p, or p–p)

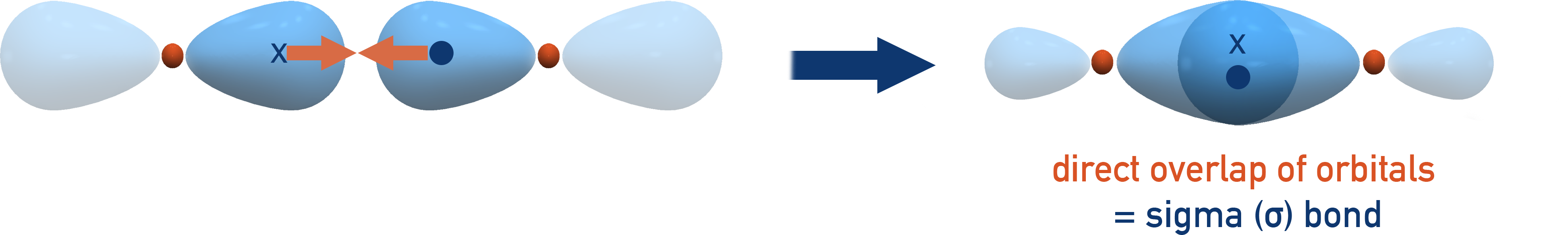

CIE A-Level Chemistry diagram showing sigma bond formation from end-on orbital overlap.

π (Pi) Bonds

Formed by sideways overlap of unhybridised p orbitals

CIE A-Level Chemistry diagram showing pi bond formation from sideways overlap of p orbitals.

Examples:

CIE A-Level Chemistry diagram comparing sigma and pi bonding in organic molecules.

Use of the Term "Planar"

Planar means flat, i.e. all atoms lie in the same plane.
Molecules with sp² hybridised atoms (e.g. ethene) are planar

CIE A-Level Chemistry diagram showing planar geometry of sp2 hybridised atoms.

The double bond prevents rotation, giving a fixed geometry and leading to stereoisomerism for some molecules (see Isomerism).

Example Ethene (CH2=CH2):

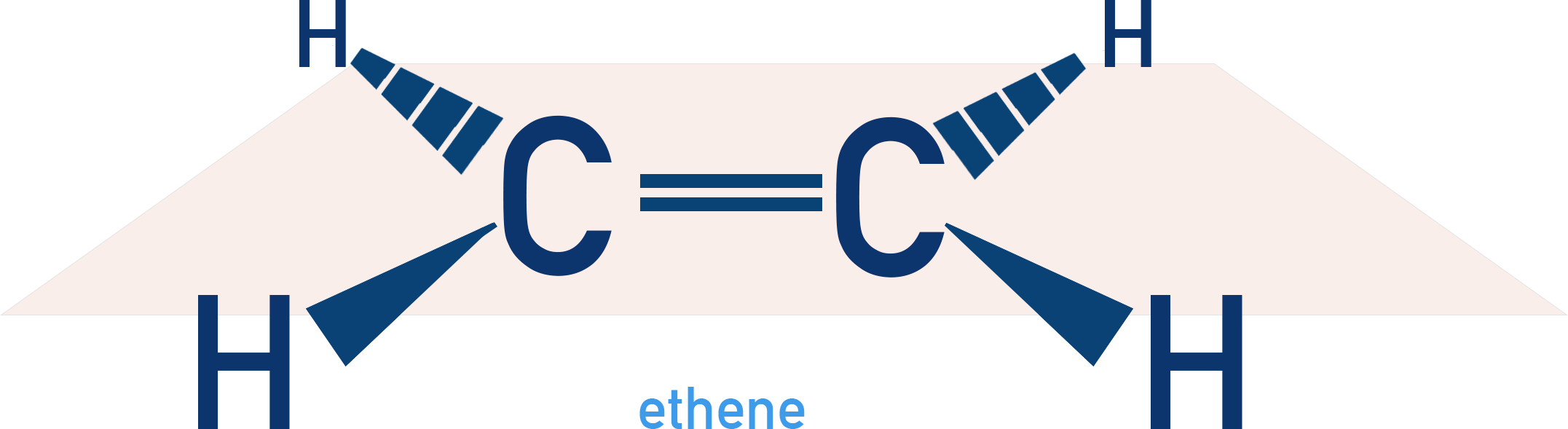

CIE A-Level Chemistry diagram of ethene molecule showing sp2 hybridisation and planar structure.

Summary
