Dot-and-Cross Diagrams

Specification Reference Physical Chemistry: Chemical bonding 3.7

Quick Notes

  • Dot-and-cross diagrams show the outer electrons involved in bonding, using either dots or crosses to represent electrons from different atoms.
  • We can use them to show:
    • Forming of ions for ionic bonding (transfer of electrons)
    • Covalent bonding (shared electrons)
    • Coordinate (dative covalent) bonding (shared electrons both from the same atom)

Full Notes

What is a Dot-and-Cross Diagram?

A dot-and-cross diagram is a way to represent bonding in a compound. It shows:

They help visualise:

Ionic Bonding in Dot-and-Cross Diagrams

In ionic bonding:

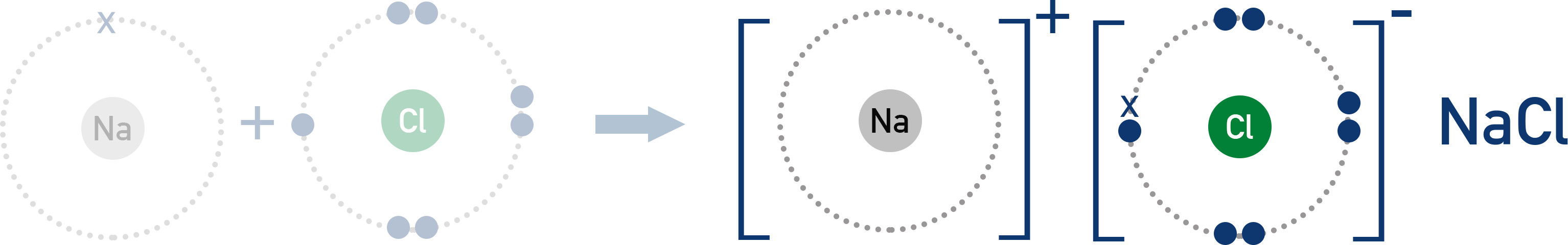

Example Sodium chloride (NaCl)

Dot-and-cross diagram showing sodium chloride electron transfer and ions in square brackets.

Covalent Bonding in Dot-and-Cross Diagrams

In covalent bonding:

Examples of molecules with Single bonds (1 shared pair):

Dot-and-cross diagrams of molecules with single covalent bonds.

Examples of molecules with Double bonds (2 shared pairs):

Dot-and-cross diagrams of molecules with double covalent bonds.

Examples of molecules with Triple bonds (3 shared pairs):

Dot-and-cross diagram of nitrogen molecule with triple covalent bond.

Coordinate (Dative Covalent) Bonding

In coordinate bonding both electrons in the shared pair come from one atom.

Examples of co-ordinate bonding:

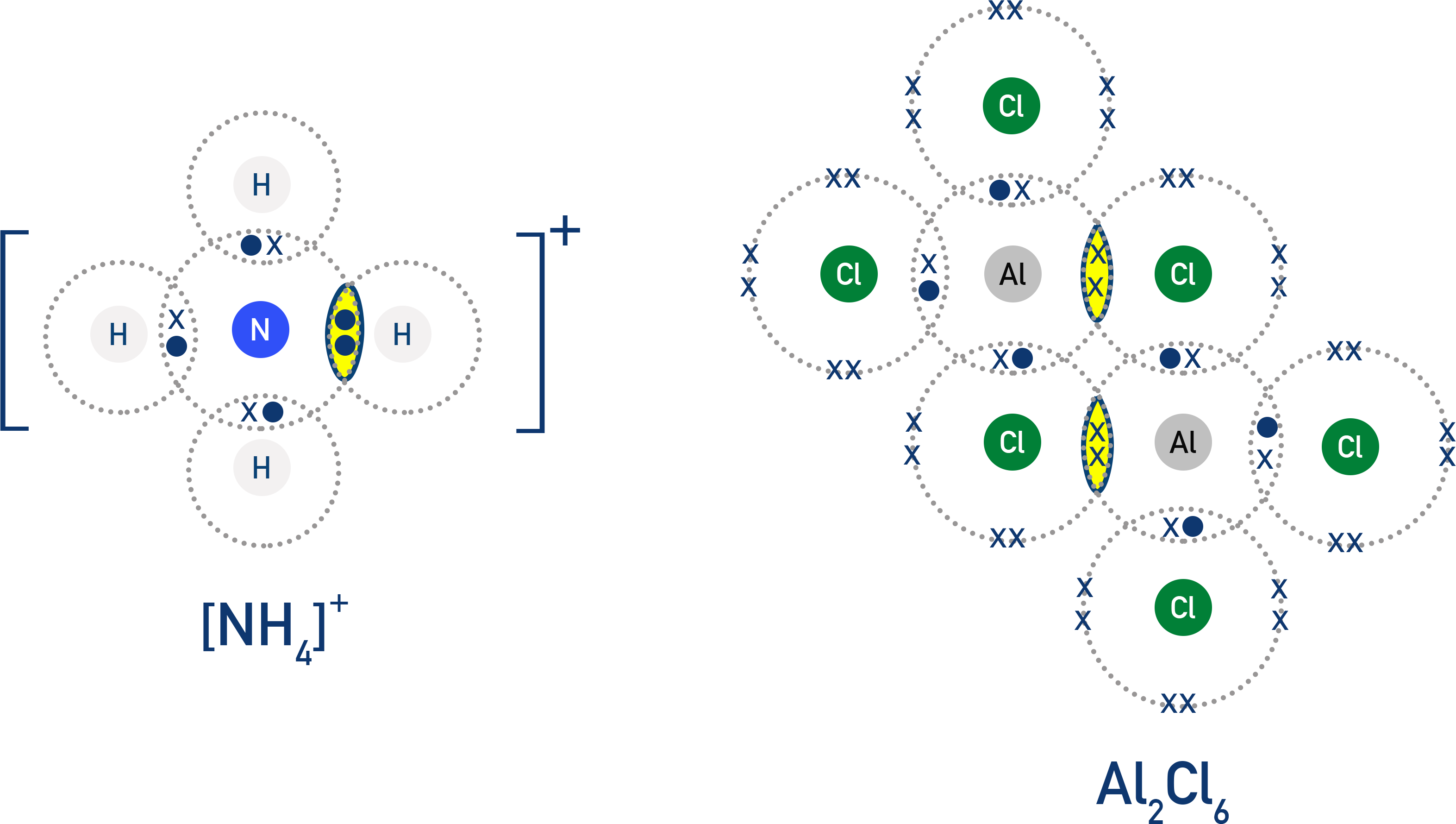

Dot-and-cross diagrams showing coordinate bonding in NH4+ and Al2Cl6.

Expanded Octets

Some elements (usually in Period 3 or below) can hold more than 8 electrons.

Examples:

Dot-and-cross diagrams showing expanded octets in SO2, PCl5, SF6.

Molecules with an Odd Number of Electrons

Some species (called free radicals) have an unpaired electron.

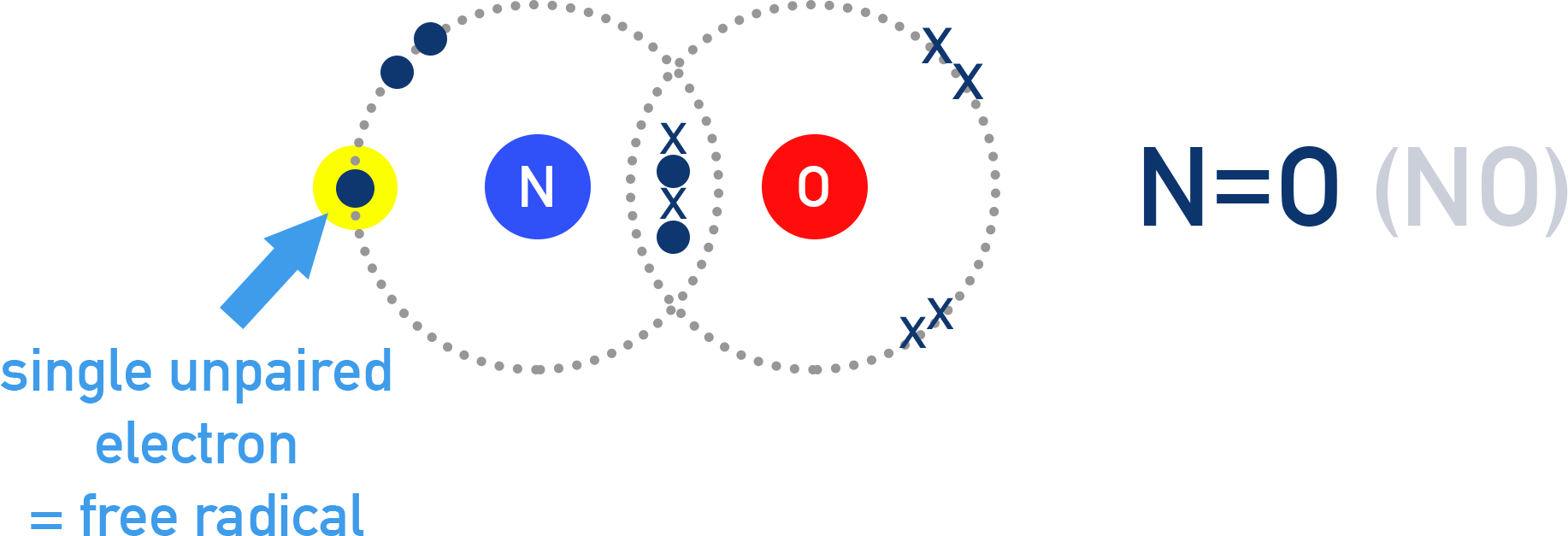

Example NO (nitric oxide): total of 11 outer electrons → one electron will remain unpaired in the diagram.

Dot-and-cross diagram of nitric oxide radical with unpaired electron.
Photo of Matt
Matt’s exam tip

You should show an unpaired electron clearly, usually as a single dot or cross without a pair. Make it obvious and clear it is a radical.

Summary
