Energy levels, shells, sub-shells, atomic orbitals, electron configuration

Full Notes

Electron configurations and orbital shapes have been outlined in more detail here and here.
This page is just what you need to know for OCR (A) A-level :)

Shells, Sub-shells, Orbitals and the Principal Quantum Number (n)

Electrons in an atom are arranged in energy levels, or shells, labelled using the principal quantum number n (n = 1, 2, 3...).

Each Energy Level (shell) contains sub-shells: s, p, d (and f from n = 4).

Each sub-shell consists of orbitals, which are regions of space where there is a high probability of finding an electron. Each orbital holds a maximum of 2 electrons with opposite spins.

Orbitals in Sub-shells and Their Electron Capacity

• s sub-shell contains 1 orbital → holds 2 electrons
• p sub-shell contains 3 orbitals → holds 6 electrons
• d sub-shell contains 5 orbitals → holds 10 electrons

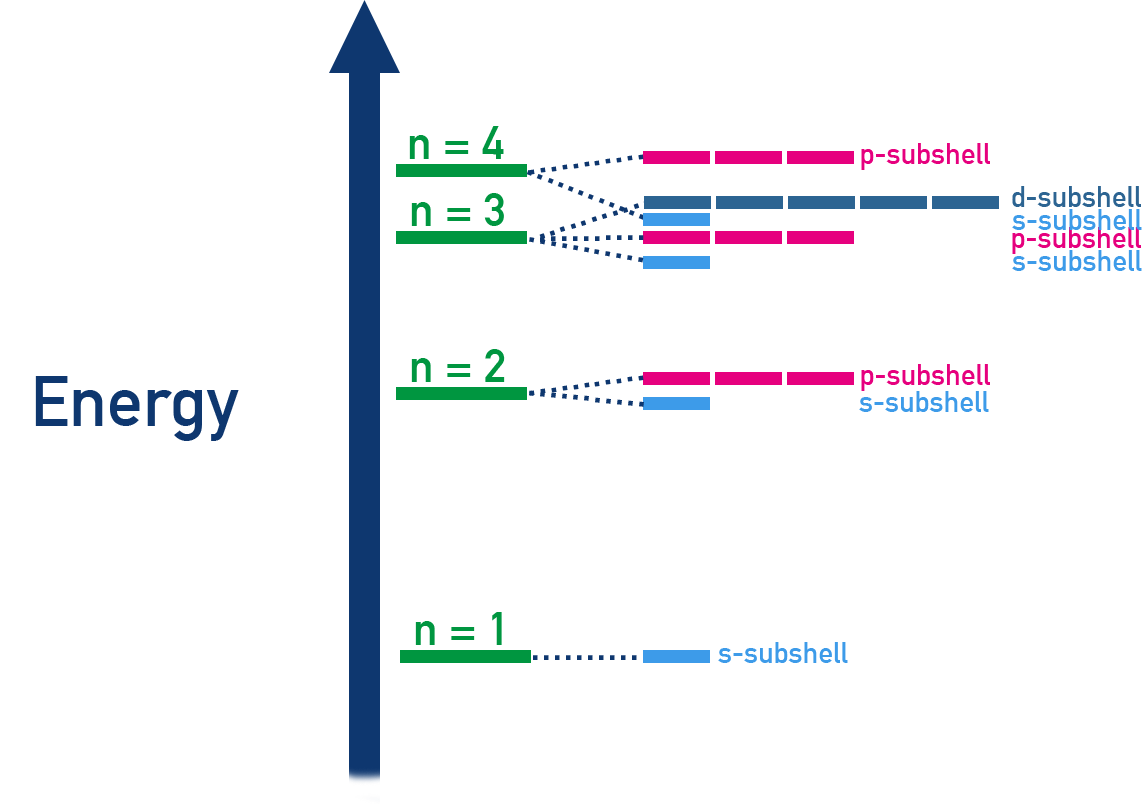

Energy Order of Sub-shells

Electrons fill sub-shells in order of increasing energy (the Aufbau principle).

The order up to krypton (Z = 36) is: 1s → 2s → 2p → 3s → 3p → 4s → 3d → 4p.

Note: The 4s sub-shell is filled before 3d because it is lower in energy.

Electron Configurations (Full and Shorthand)

Electron configurations show how electrons are arranged within atoms or ions.

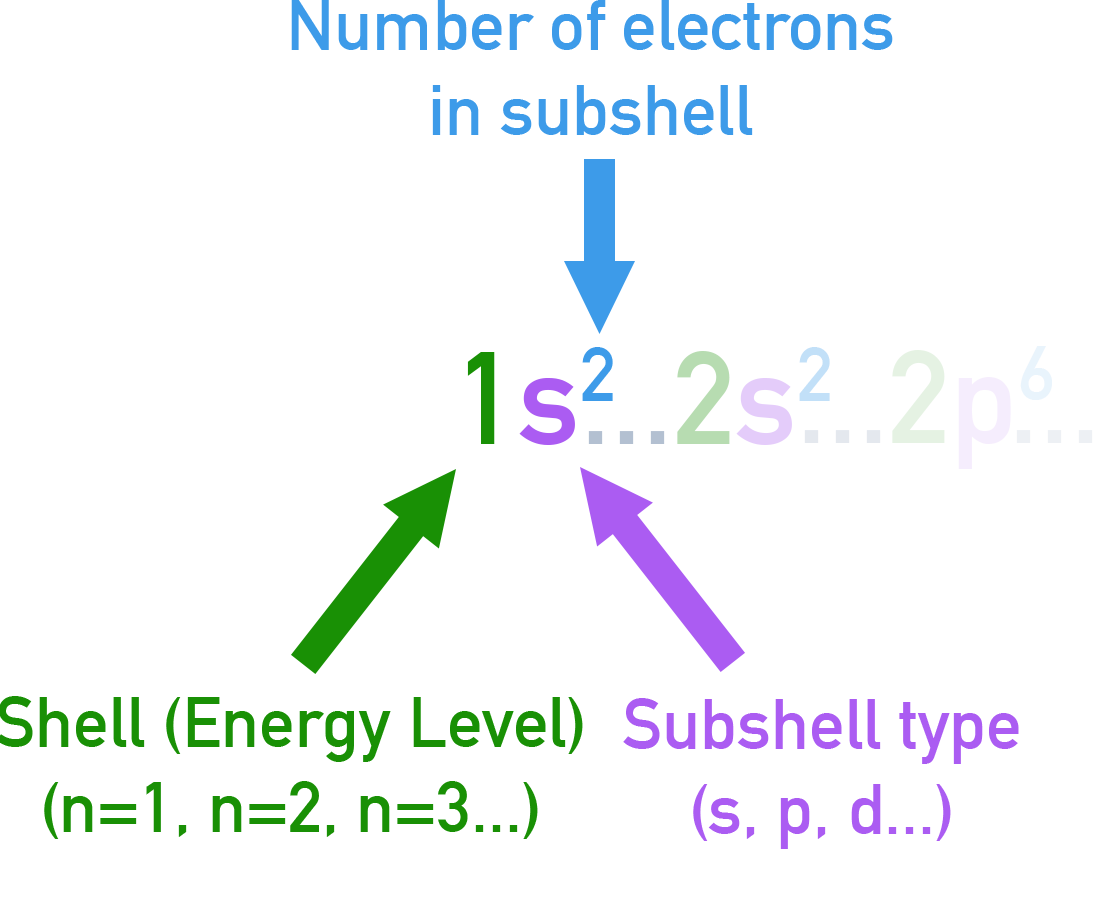

The notation uses a number for the shell (n), a letter for the sub-shell (s, p, d) and a superscript for the number of electrons.

For Example:

• O (Z = 8) → 1s² 2s² 2p⁴
• Ca (Z = 20) → 1s² 2s² 2p⁶ 3s² 3p⁶ 4s²

Inner electrons can be represented using shorthand notation, refering to a noble gas.

For Example:

• Ca = [Ar] 4s²
• Fe = [Ar] 3d⁶ 4s²
where [Ar] = 1s² 2s² 2p⁶ 3s² 3p⁶

Energy and Electron Repulsion

Electron configurations are determined by energy levels (electrons fill lower-energy sub-shells first) and electron–electron repulsion (electrons prefer to occupy separate orbitals in a sub-shell before pairing up, as this lowers repulsion). This explains why 4s fills before 3d and also helps explain trends in ionisation energy.

Configurations of Atoms and Ions

In reactions, atoms often gain or lose electrons and as a result their electron configuration changes. Positive ions (cations) lose electrons, starting with the highest energy level. Negative ions (anions) gain electrons into the next available orbital.

Examples Electron configurations for ions:

• Na (Z = 11): 1s² 2s² 2p⁶ 3s¹ → Na⁺ = 1s² 2s² 2p⁶.
  The 3s¹ is the highest-energy occupied orbital, meaning this electron is lost first.
• Cl (Z = 17): 1s² 2s² 2p⁶ 3s² 3p⁵ → Cl⁻ = 1s² 2s² 2p⁶ 3s² 3p⁶.
  The empty space in a 3p orbital is the lowest-energy available orbital an electron can go into, meaning the configuration changes from 3p⁵ to 3p⁶ and the chlorine atom gains a negative charge.

Electrons-in-Boxes Notation

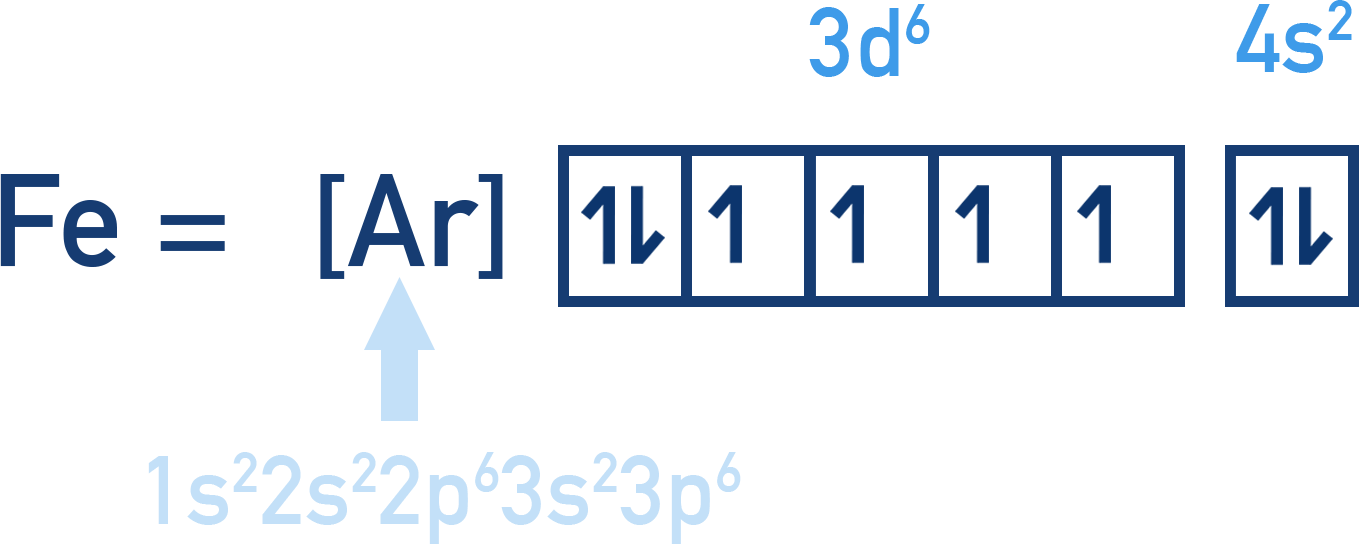

We can also show electron arrangements using 'box notation' where each orbital is shown as a box with arrows for electrons.

Note that the arrows for electrons in each box (orbital) point in opposite directions, to represent opposite spins.

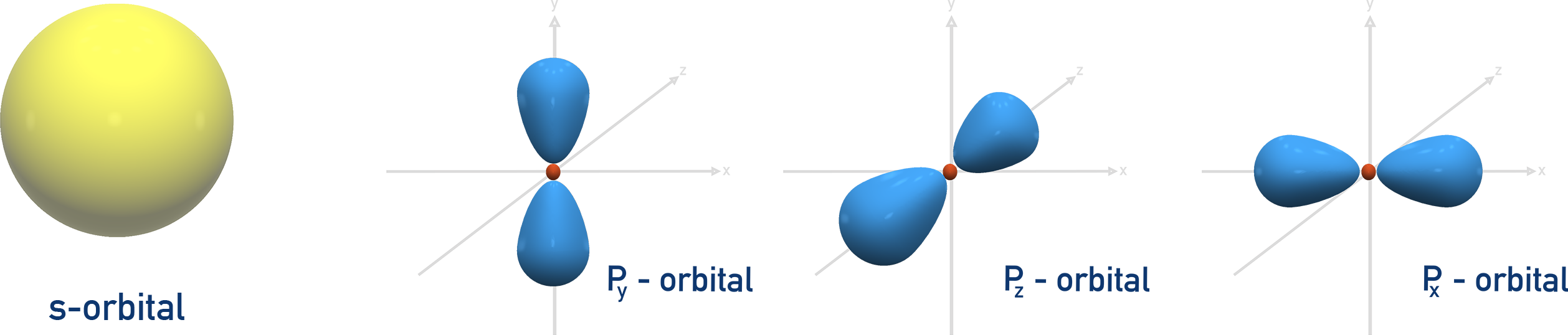

Shapes of s and p Orbitals

s orbital: spherical shape.
p orbital: dumbbell shape, oriented in x, y, and z directions.
These shapes affect how orbitals overlap in bonding.

Summary

• Electrons occupy orbitals in sub-shells within shells and each orbital holds 2 electrons with opposite spins.
• Sub-shell capacities: s (2), p (6), d (10). Filling order up to 4p follows 1s → 2s → 2p → 3s → 3p → 4s → 3d → 4p.
• Electron configurations can be written fully or in shorthand; 4s fills before 3d.
• Electrons singly occupy orbitals before pairing due to electron–electron repulsion.
• Ion configurations change by loss (cations) or gain (anions) of electrons at the highest/next available energy level.
• s orbitals are spherical and p orbitals are dumbbell shaped.
