Core Practical 6: Synthesis of an Organic Solid

Aim: Prepare and purify aspirin via the reaction of salicylic acid with ethanoic anhydride. Key techniques: reflux, crystallisation, filtration under reduced pressure, drying, and melting point analysis.

Safety Notes

Apparatus and Chemicals

Apparatus

Chemicals

Method Overview

Reaction (Esterification)

  1. Mix salicylic acid and ethanoic anhydride in a conical flask.
  2. Add a few drops of phosphoric acid (catalyst).
  3. Heat gently in a water bath (~70 °C) for 15–20 minutes.

Crystallisation

  1. Pour the hot reaction mixture into cold water in a beaker to precipitate aspirin.
  2. Cool further in an ice bath to maximise crystal formation.

Filtration

  1. Collect the crude aspirin by filtration under reduced pressure using a Buchner funnel.

Recrystallisation

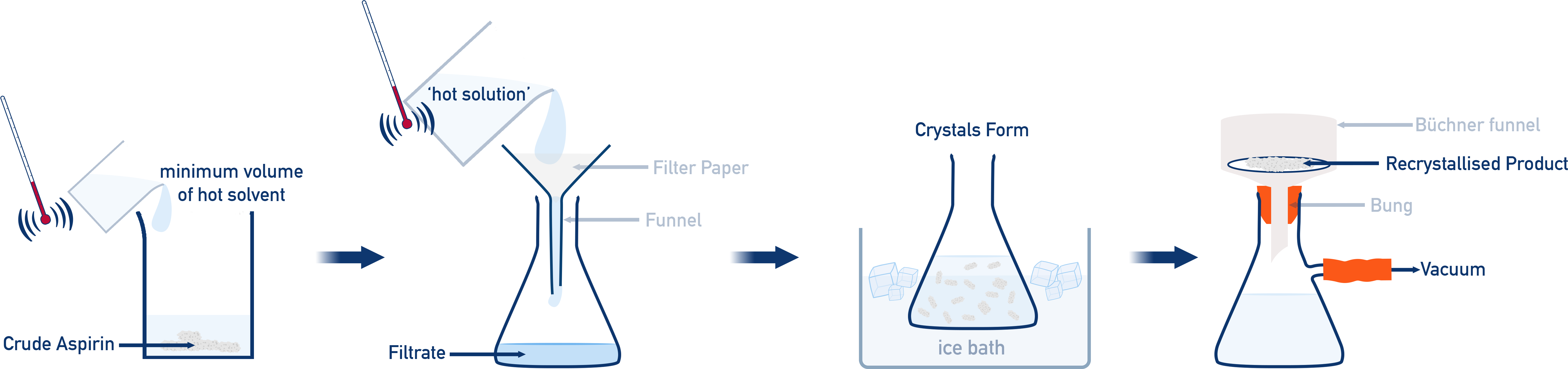

Recrystallisation setup for aspirin purification.
  1. Dissolve crude aspirin in a minimum of warm ethanol.
  2. Immediately filter the hot solution through fluted filter paper.
  3. Allow the filtrate to cool and crystallise.
  4. Filter the crystals under reduced pressure using a Buchner funnel.

Purity Check

  1. Measure the melting point of aspirin using a melting point apparatus and compare to literature (~135 °C).
  2. Run TLC with pure aspirin and salicylic acid as references and compare Rf values.

Thin Layer Chromatography (TLC) of Aspirin

Objective: Assess the purity of prepared aspirin by TLC, comparing it with pure aspirin and salicylic acid.

Apparatus and Chemicals

Procedure

  1. Prepare plate: Draw baseline 1 cm from bottom.
    Mark spots:
    • A (pure aspirin)
    • S (salicylic acid)
    • P (product)
  2. Spot samples with capillaries and dry and re-spot if needed.

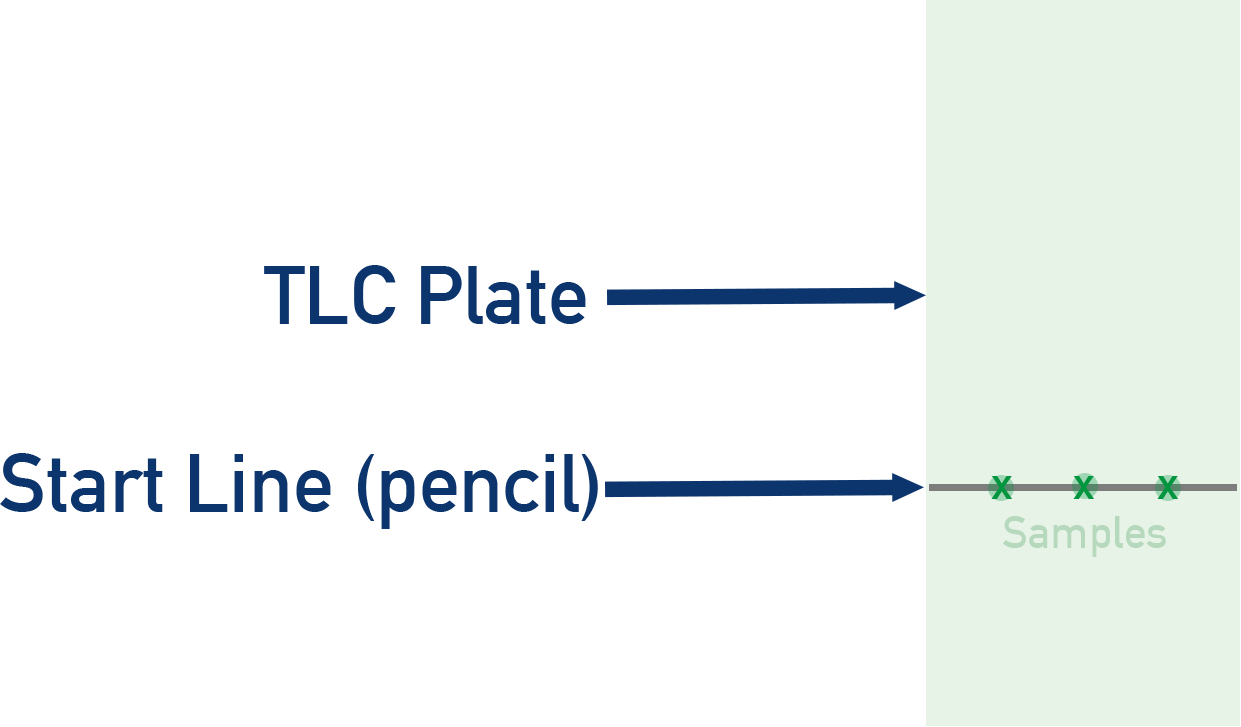

TLC plate baseline and spotted samples: aspirin, salicylic acid, and product.
  1. Develop: Place plate in chamber with ~0.5 cm solvent. Ensure solvent level is below baseline. Cover and allow solvent to rise.

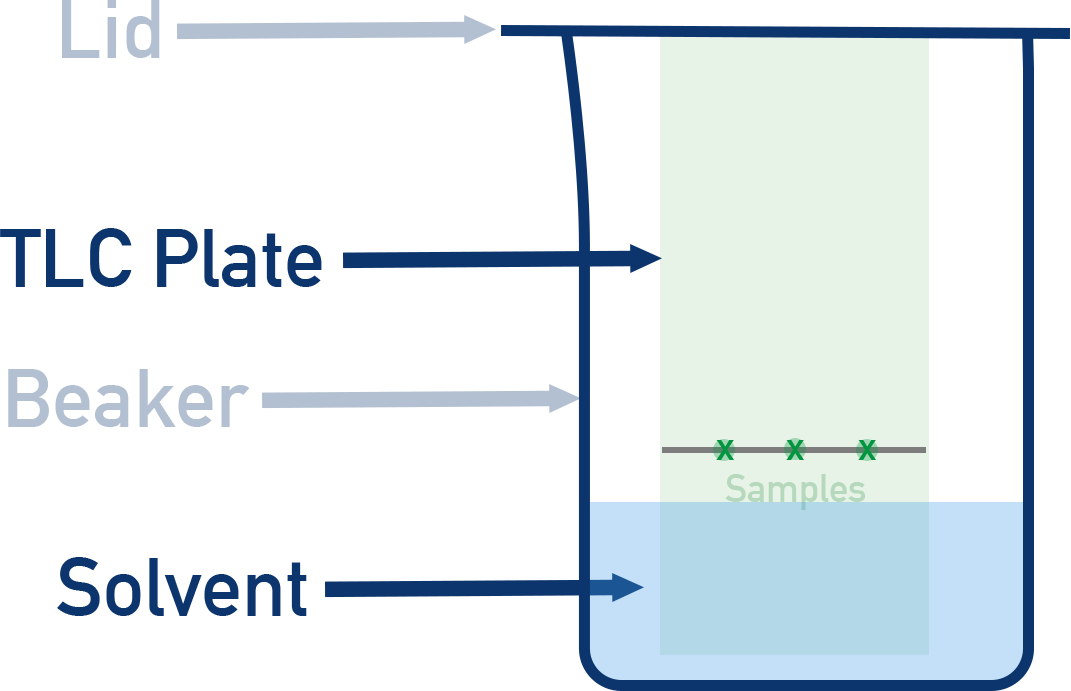

TLC plate in solvent chamber with solvent front rising.
  1. Visualise: Remove plate when solvent front is ~1 cm from top. Mark solvent front with pencil. View under UV or spray with locating agent.

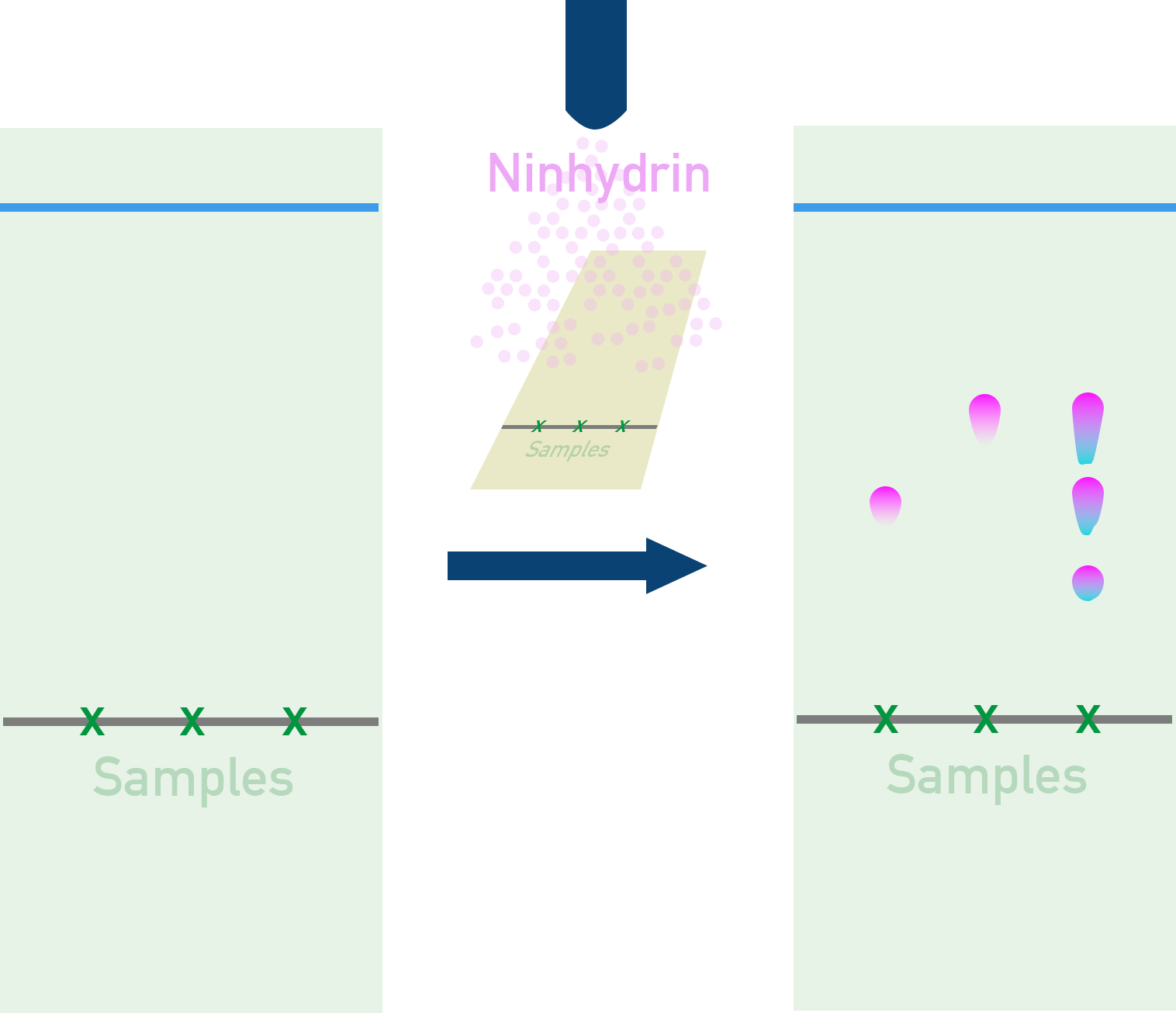

Visualisation of TLC plate spots with UV lamp or locating agent.
  1. Calculate Rf: Rf = distance moved by spot ÷ distance moved by solvent front.

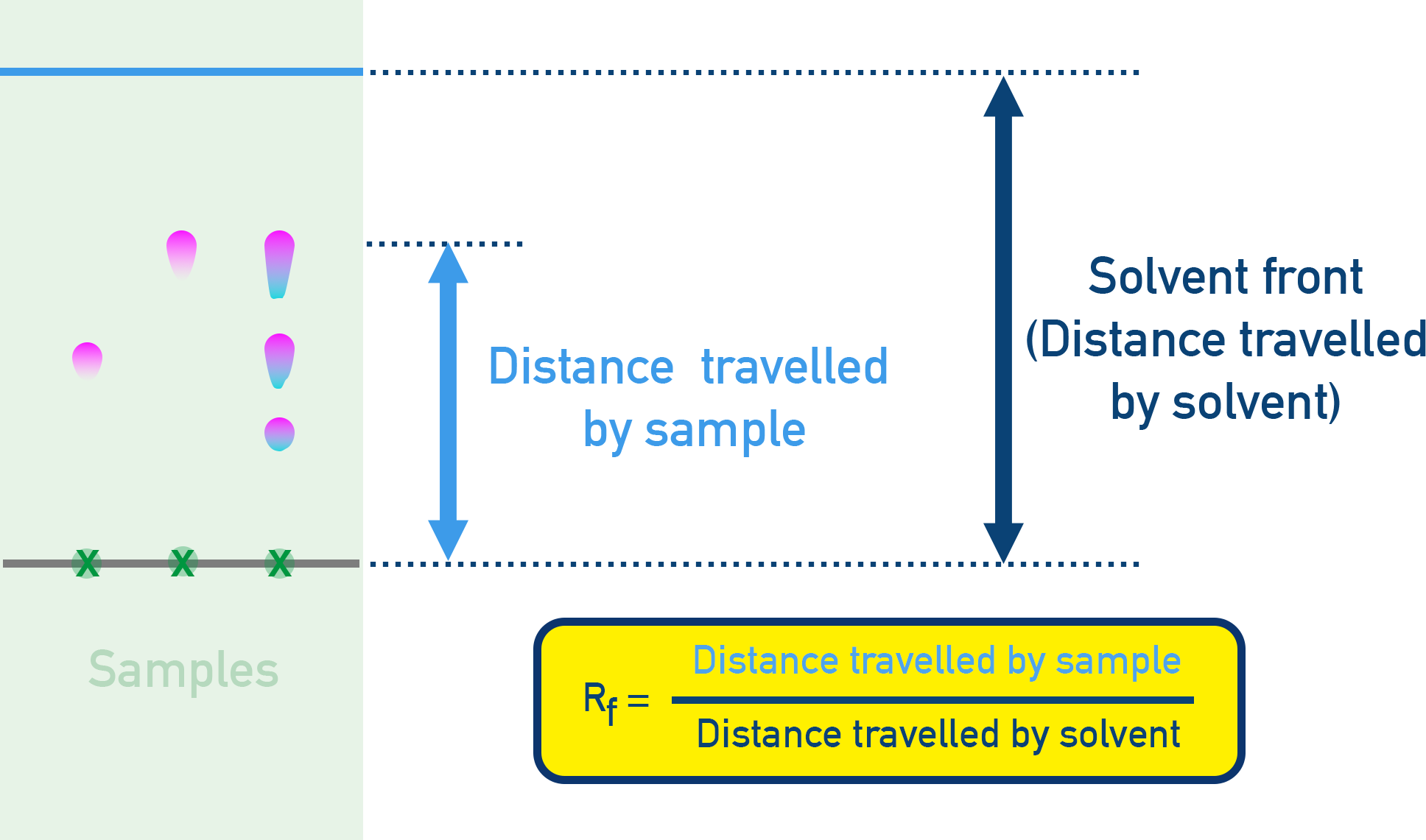

Rf value calculation diagram for TLC plate.

Interpreting Results

Example Calculation: % Yield

Note: Yield > 100% indicates impurities or incomplete drying.

Sources of Error
