4.1.3 Alkenes

Addition reactions of alkenesPolymers from alkenesProperties of alkenesStereoisomerism in alkenes

Bonding in Alkenes

Specification Reference 4.1.3 (a)–(b)

Quick Notes

  • Alkenes are unsaturated hydrocarbons containing a C=C double bond made of a σ-bond (direct orbital overlap) and a π-bond (sideways p-orbital overlap).
    • OCR (A) A-Level Chemistry diagram showing sigma and pi bonding in an alkene C=C double bond.
    • The π-bond restricts rotation around the C=C bond.
  • The C=C bond in alkenes gives rise to a trigonal planar shape.
    • Bond angle approximately 120° around each carbon in the double bond.

Full Notes

Structure of Alkenes

Alkenes contain a C=C double bond made up of a σ-bond and π-bond:

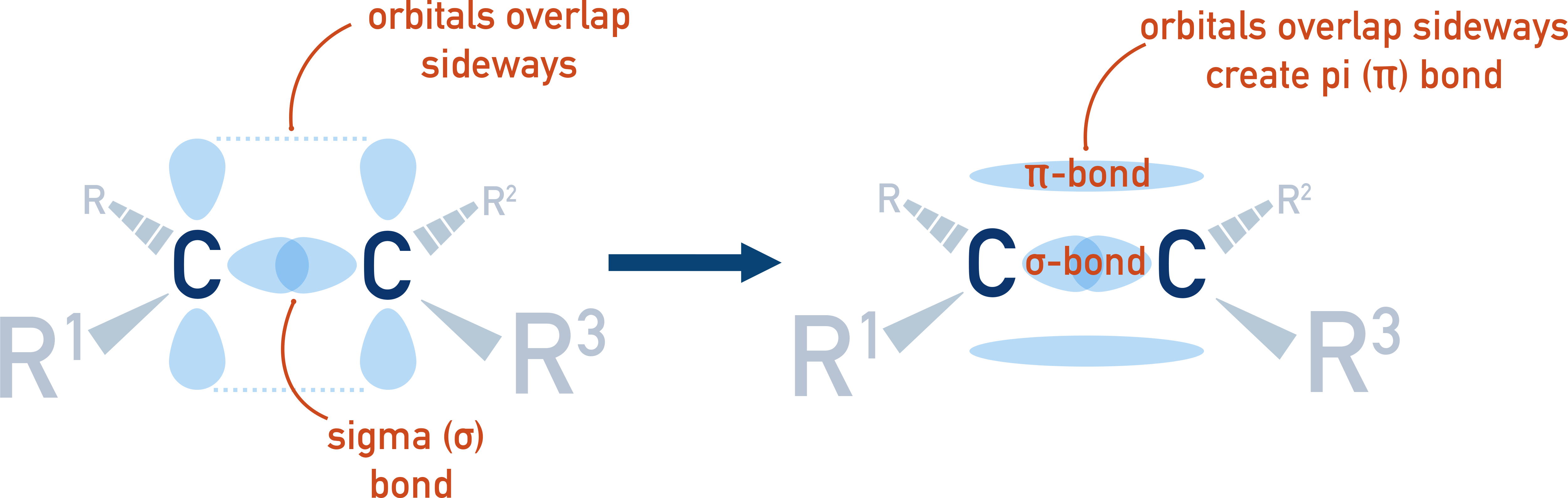

OCR (A) A-Level Chemistry diagram showing sigma and pi bonding in an alkene C=C double bond.

The σ-bond is formed by end-to-end overlap of orbitals.

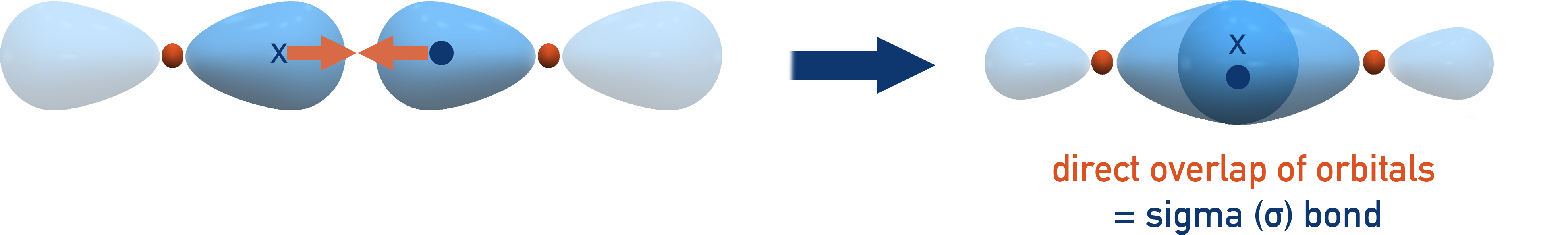

OCR (A) A-Level Chemistry diagram showing sigma bond formed by end-to-end orbital overlap in an alkene.

The π-bond is formed by sideways overlap of adjacent p-orbitals, located above and below the plane of the bonded atoms.

OCR (A) A-Level Chemistry diagram showing pi bond in an alkene from sideways overlap of p-orbitals.

This π-bond prevents free rotation around the double bond, a key feature responsible for stereoisomerism in alkenes (see here).

Shape Around C=C

Each carbon in the double bond is bonded to three other atoms.

The bonding pairs repel each other and adopt a trigonal planar arrangement, with bond angles of approximately 120°.

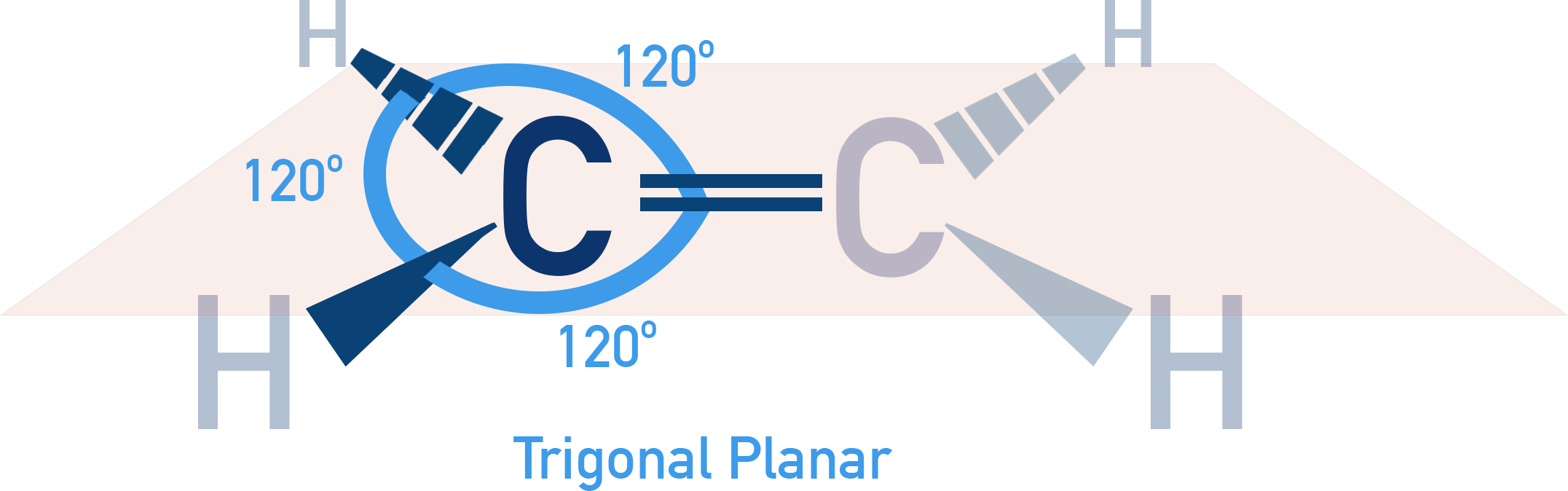

OCR (A) A-Level Chemistry diagram showing trigonal planar shape around carbon-carbon double bond in alkenes.

This flat shape arises from the electron pair repulsion in the region around the C=C bond. If you are unsure why this is the case, see Shapes of Molecules.

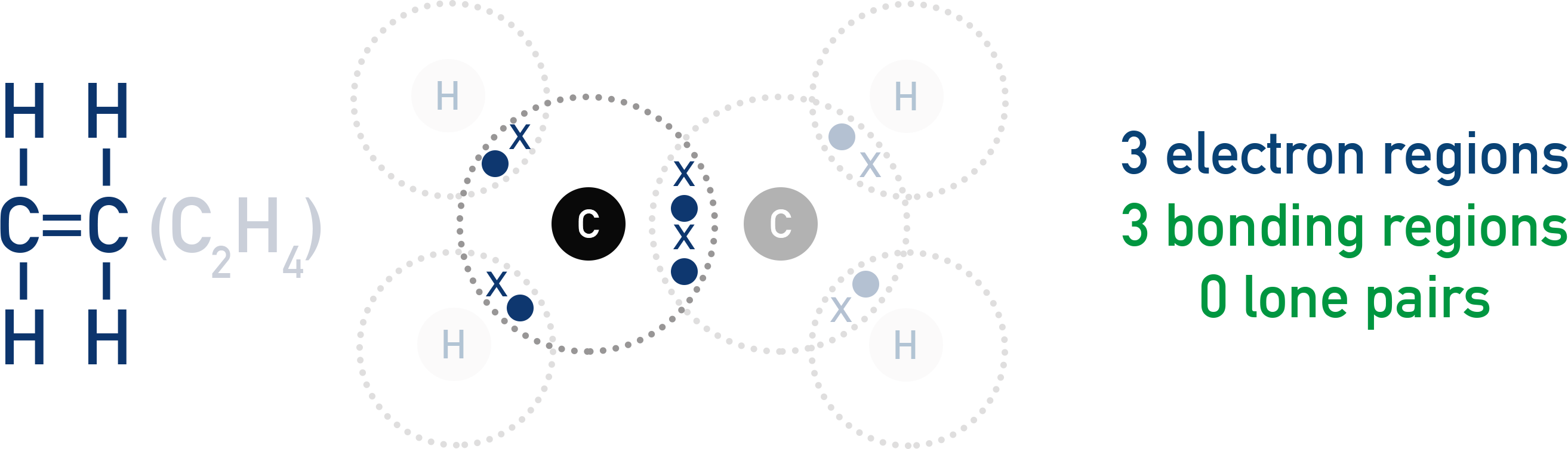

OCR (A) A-Level Chemistry dot-and-cross diagram showing electron distribution in alkene bonding.
