4.2.4 Analytical techniques

Combined techniquesInfrared spectroscopyMass spectrometry

Mass spectrometry

Specification Reference 4.2.4 (f)–(g)

Quick Notes

  • Mass spectrometry can be used to identify organic compounds using mass-to-charge ratio (m/z) of molecular ions.
  • The molecular ion peak (M⁺) gives the relative molecular mass (Mr).
  • Smaller peaks are caused by fragmentation, the breakdown of the molecular ion.
  • [M+1]⁺ peaks indicate the presence of carbon-13 isotopes.

Full Notes

Mass Spectrometry and how it works is covered in more detail here.
This page is just what you need to know for OCR (A) A-level :)

The Basics

Mass spectrum with labelled molecular ion peak and fragment peaks.

The molecular ion peak (M⁺) represents the relative molecular mass (Mr) of the compound.

Identifying Molecular Mass and Formula

The molecular ion peak (M⁺) in a spectra has the highest m/z value.
We can use precise atomic masses to confirm the molecular formula based on the M+ peak.

For Example: Determining the molecular formula of a compound with M⁺ = 58.12

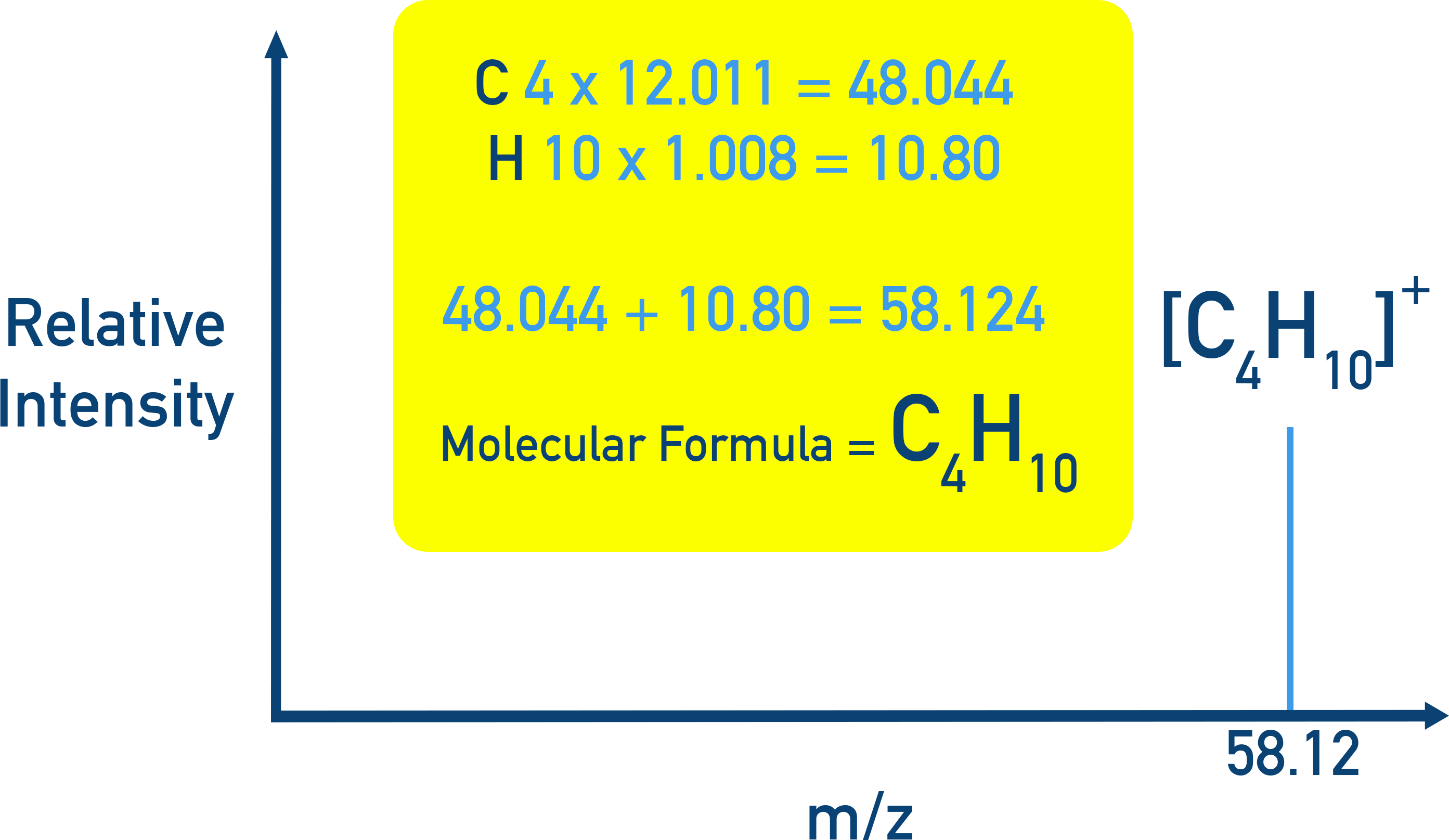

Worked example using M+ = 58.12 to suggest a molecular formula, e.g. C4H10.

Fragmentation

Inside a mass spectrometer, molecular ions can break into fragments.

Each fragment forms a smaller ion and shows up as a peak at a lower m/z.
These peaks help identify parts of the molecule.

Worked Example: Fragmentation patterns of isomers

For example, Hydrocarbons A and B both have a molecular formula of C4H10 (same molecular ion peak), however they have different fragment patterns in their spectra, showing different structures,

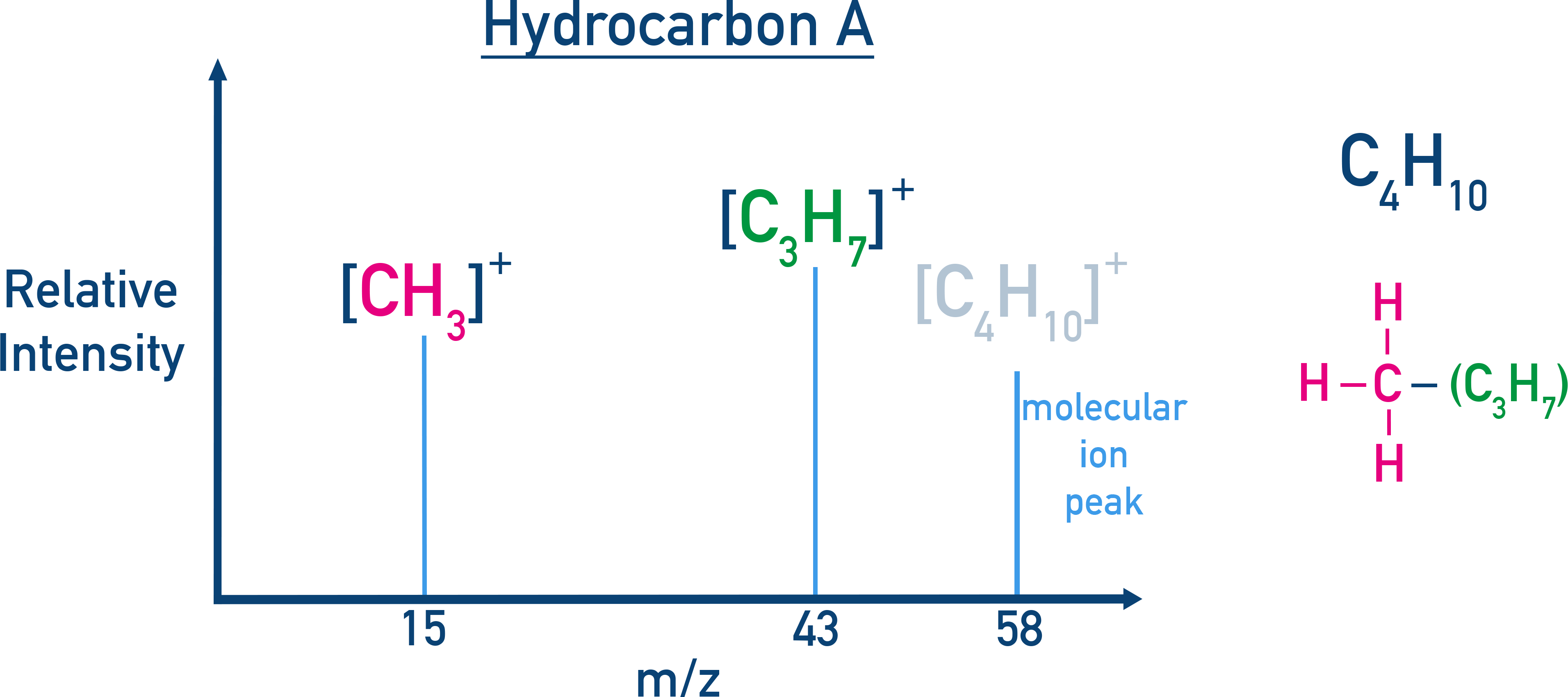

Fragmentation patterns in mass spectra for C4H10 isomers highlighting m/z 15, 29 and 43.

Fragment peaks at 15 and 43 show a CH3 fragment and C3H7 fragment. However, no fragment at 29 means no C2H5 group. This means the likely possible structure is CH3CH(CH3)CH3

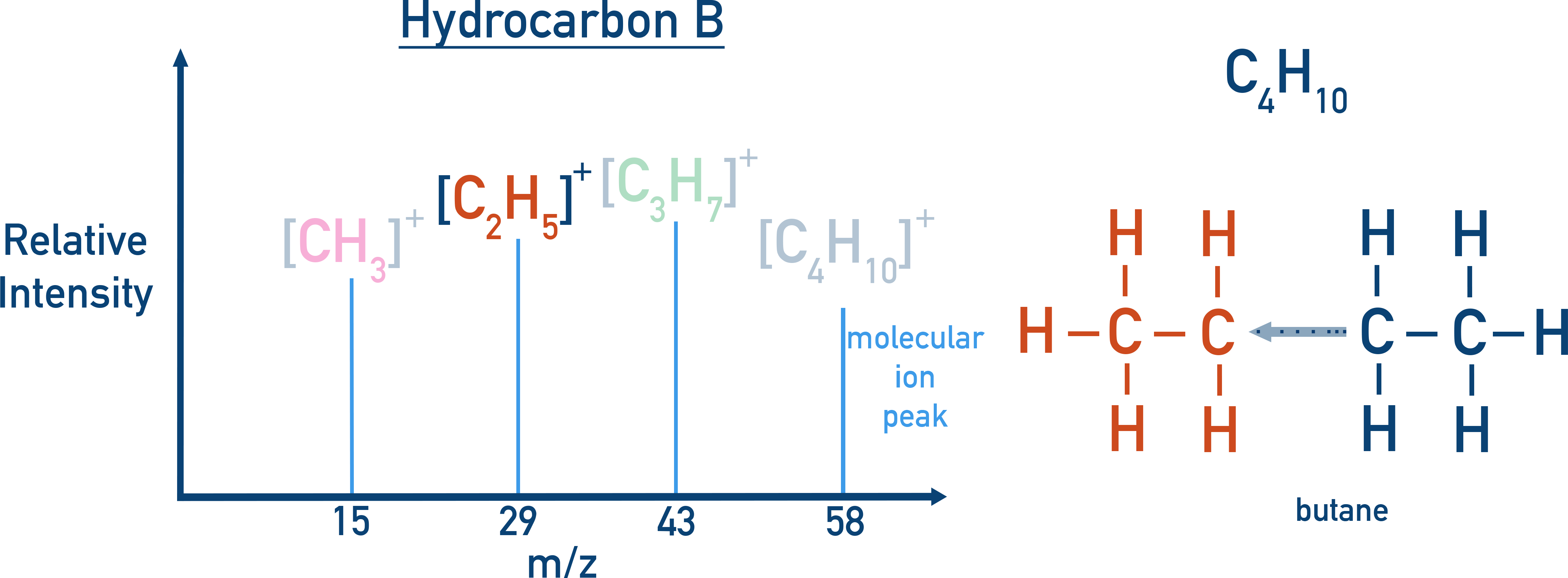

Fragmentation example showing peaks confirming a branched alkane structure.

The extra peak at m/z 29 for Hydrocarbon B means it has a C2H5 group in its structure (as well as a CH3 and C3H7 group). This would indicate CH3CH2CH2CH3 as its structure.

The [M+1]⁺ Peak

The M+1 peak is a small peak 1 unit higher than the main molecular ion peak, M⁺, caused by molecules containing one carbon-13 atom.

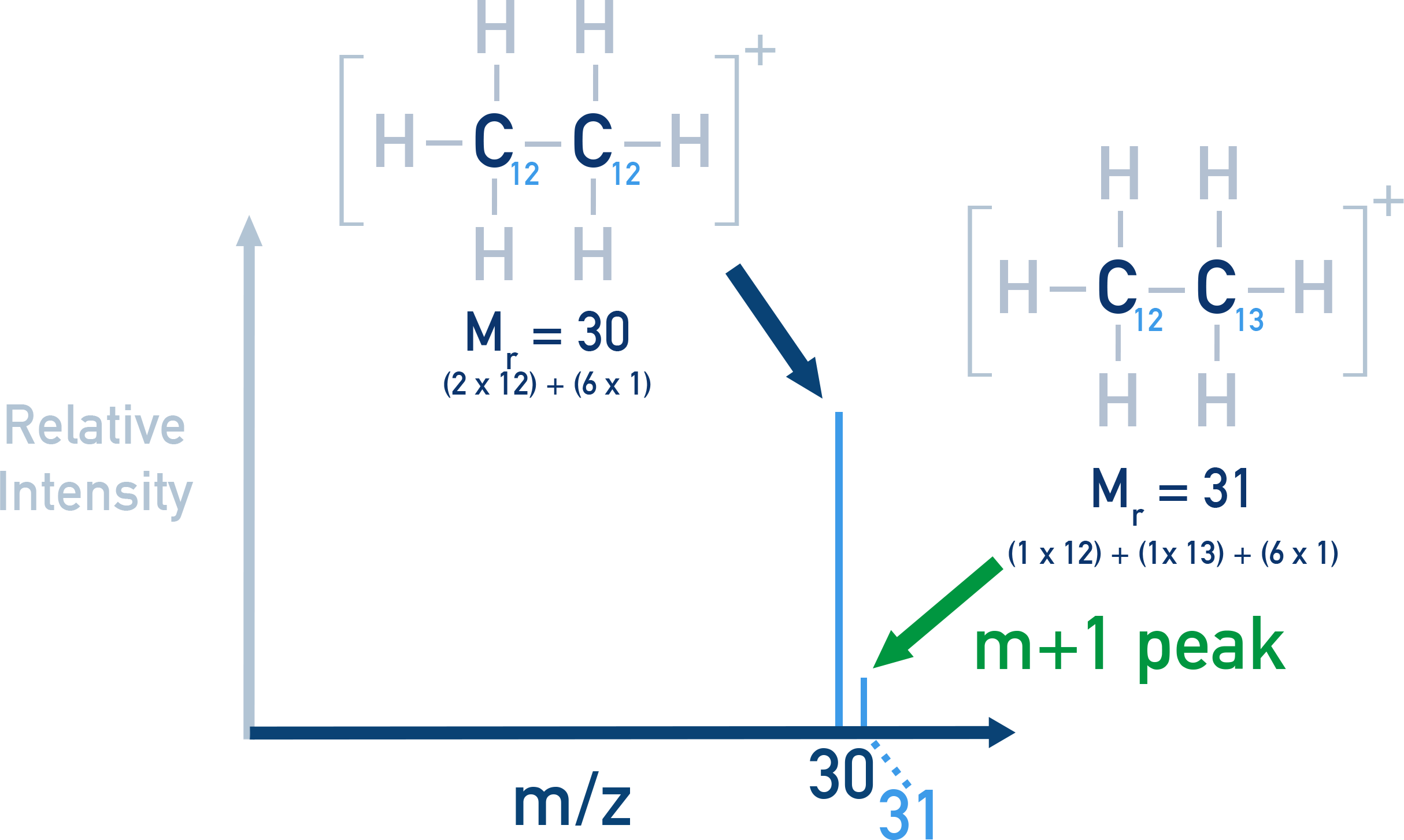

Illustration of an M+1 peak one unit above the molecular ion peak caused by 13C.

Summary
