Core Practical 8: Measuring the EMF of an Electrochemical Cell (Copper and Zinc Half-Cells)

Aim: To measure the EMF (electromotive force) of an electrochemical cell formed between two metal/metal ion half-cells (e.g., Cu²⁺/Cu and Zn²⁺/Zn) and understand the flow of electrons and standard cell potential.

Method Summary

Electrochemical cell setup with zinc and copper half-cells connected by a salt bridge and voltmeter.

Prepare the Electrodes

  1. Clean zinc and copper strips with emery (sand) paper.
  2. Degrease with cotton wool and propanone.

Prepare the Half-Cells

  1. Place copper strip in 100 cm³ of 1.0 mol dm⁻³ CuSO₄ solution.
  2. Place zinc strip in 100 cm³ of 1.0 mol dm⁻³ ZnSO₄ solution.
  3. Use a salt bridge made of filter paper soaked in saturated KNO₃ solution to connect the two half-cells.

Measure the EMF

  1. Connect the metals to a high-resistance voltmeter using crocodile clips and wires.
  2. Electrons flow from Zn (more reactive, more negative potential) to Cu.
  3. Repeat the process using different concentrations of CuSO₄ and ZnSO₄ solutions to investigate how the Ecell value changes with concentration.

Salt Bridge Explanation

  1. Contains free-moving ions (e.g., K⁺ and NO₃⁻) that maintain charge balance by completing the circuit.
  2. Must not react with solutions.
  3. Can be made by soaking filter paper in a saturated solution of KNO₃.

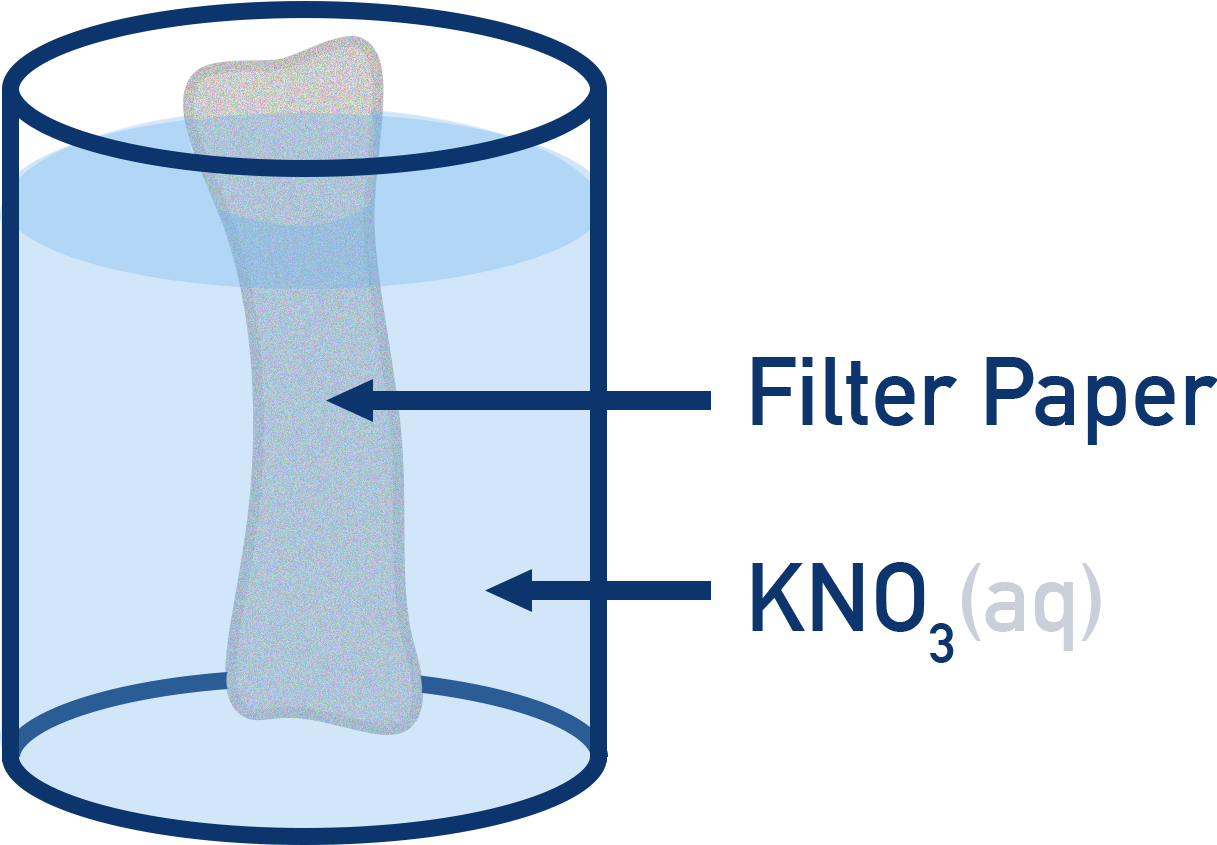

    4. Salt bridge used in an electrochemical cell, soaked in KNO3 solution to complete the circuit.

Platinum Electrode Use

For redox couples that do not include a metal (e.g., Fe²⁺/Fe³⁺), an inert platinum electrode is used as it conducts electricity without reacting.

Example Reaction & EMF

Half-equations:

Sources of Error
