Solubility Equilibria of Sparingly Soluble Salts

NCERT Reference: Chapter 6 – Equilibrium – Page 203

Quick Notes

  • Sparingly soluble salts dissociate only slightly in water.
  • The Solubility Product Constant (Ksp) is the equilibrium expression for the dissolving of a sparingly soluble salt.
  • The common ion effect suppresses solubility when one of the dissociated ions is already present in the solution.
  • Ksp is specific for each salt and varies with temperature.

Full Notes

Introduction

Some salts don’t dissolve well in water – they dissolve just a little, and we call them sparingly soluble salts. Even though they seem almost “insoluble,” a small amount still dissolves and sets up an equilibrium between the solid salt and the ions in solution.

This section helps us understand how to describe that equilibrium using a special constant called the solubility product (Ksp).

Solubility Product Constant (Ksp)

When a sparingly soluble salt dissolves in water, an equilibrium is set up between the solid phase and the ions in solution:

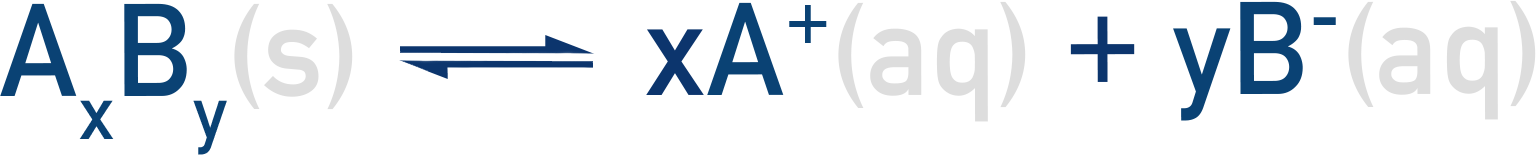

IB Chemistry NCERT Class 11 diagram showing dissolution equilibrium of a sparingly soluble salt between solid and aqueous ions.

The equilibrium constant for this process is called the Solubility Product Constant, or Ksp. It is not the same as solubility – instead, it represents the product of the ion concentrations at equilibrium.

Ksp is temperature-dependent. Although Ksp is derived from activities and technically has no units, we often use molar concentrations in calculations.

Ksp Expression:

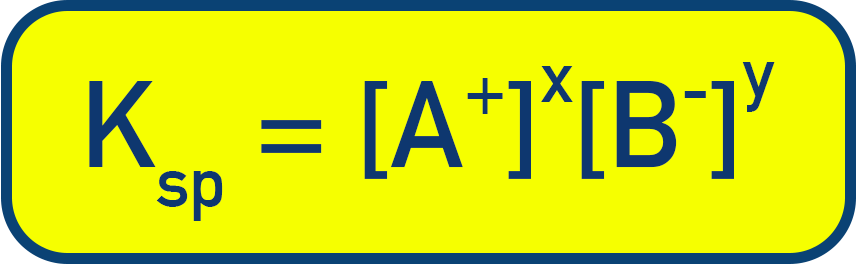

IB Chemistry NCERT Class 11 expression for solubility product Ksp as product of equilibrium ion concentrations. IB Chemistry NCERT Class 11 example Ksp constant form for a generic salt MxNy with exponents based on stoichiometric coefficients.

Calculating Solubility from Ksp

Worked Example

What is the molar solubility of PbCl2 if Ksp = 1.6 × 10−5?

  1. Write the dissociation and Ksp expression
    PbCl2(s) ⇌ Pb2+(aq) + 2Cl−(aq)
    Let solubility = x. Then [Pb2+] = x and [Cl−] = 2x.
    Ksp = [Pb2+][Cl−]2 = x(2x)2 = 4x3.
  2. Solve for x
    4x3 = 1.6 × 10−5 ⇒ x3 = 4.0 × 10−6 ⇒ x ≈ 1.6 × 10−2 mol L−1.

Answer: The molar solubility of PbCl2 ≈ 1.6 × 10−2 M.

Key Insight: A low Ksp value indicates a salt is very slightly soluble – but even these salts do dissolve to some extent and create a measurable ionic equilibrium.

Common Ion Effect on Solubility of Ionic Salts

When a solution already contains one of the ions from a dissolving salt, we call it a common ion.

Adding a common ion causes the equilibrium to shift leftward (toward the undissolved salt), according to Le Chatelier’s Principle – thereby reducing the solubility of the salt.

Example AgCl(s) in NaCl(aq)

AgCl(s) ⇌ Ag+(aq) + Cl−(aq)

Adding NaCl increases [Cl−] and equilibrium shifts left this causes more AgCl to precipitate = solubility of AgCl decreases.

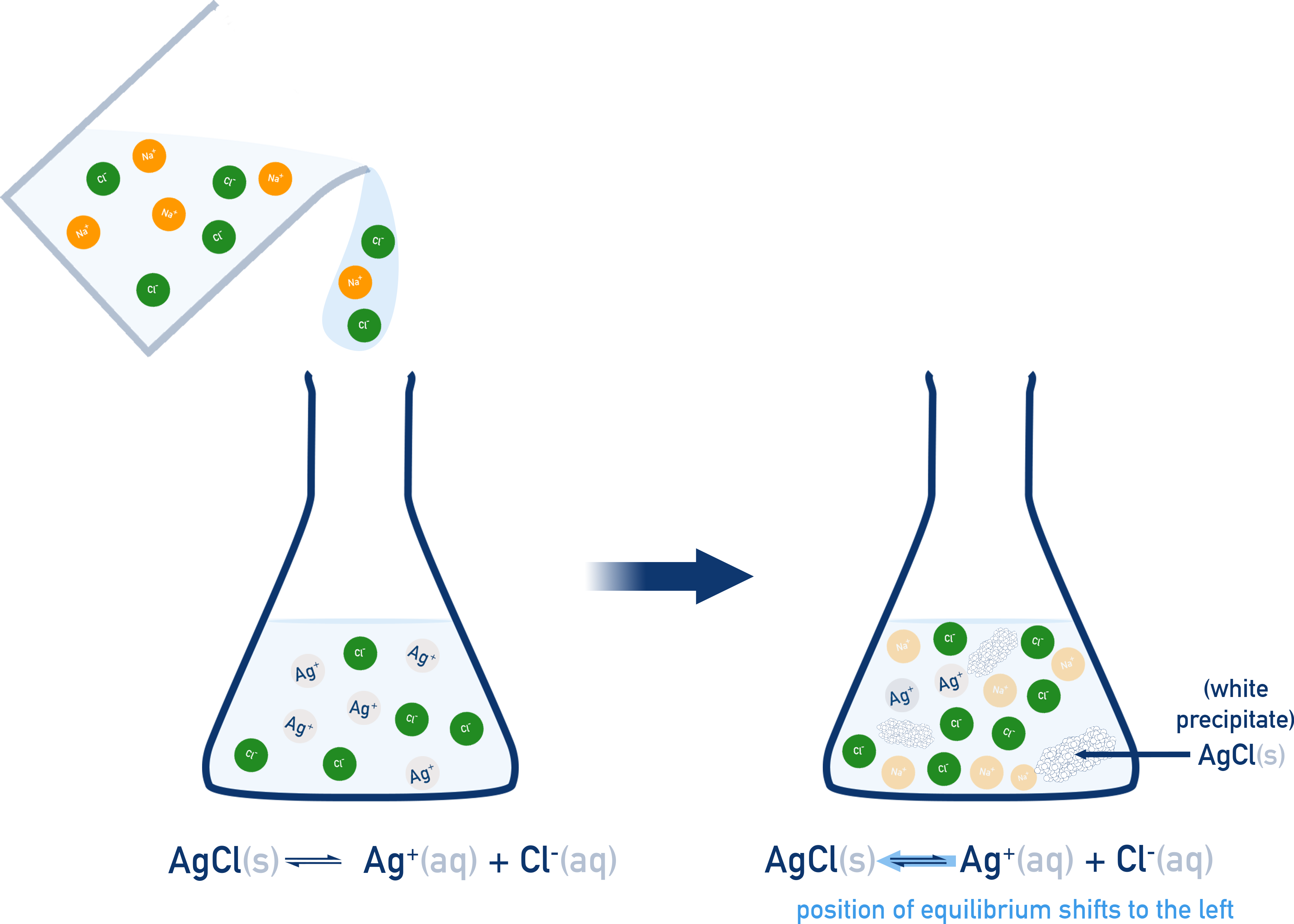

IB Chemistry NCERT Class 11 schematic showing common ion effect: added chloride drives AgCl equilibrium toward the solid.

(Note: Ksp remains constant, but the concentrations adjust.)

Calculations

If [Cl−] is known (e.g., from added NaCl), we can calculate the reduced solubility:

Ksp = [Ag+][Cl−] ⇒ [Ag+] = Ksp / [Cl−]

This gives the new [Ag+], i.e., the solubility in the presence of common ion.

Application in Qualitative Analysis

The common ion effect is a powerful tool in selective precipitation – allowing chemists to control which ions precipitate from solution.

By carefully adjusting the concentration of common ions, specific salts can be selectively removed from mixtures – a key step in qualitative ionic analysis.
