Tetravalence of Carbon: Shapes of Organic Compounds

NCERT Reference: Chapter 8 – Organic Chemistry– Page 238–239 (Part II)

Quick Notes

  • Tetravalency of Carbon: Carbon has 4 valence electrons and can form 4 covalent bonds.
  • Carbon Hybridisation:
    • sp3 → tetrahedral (e.g., methane)
    • sp2 → planar trigonal (e.g., ethene)
    • sp → linear (e.g., ethyne)
  • π Bonds: Formed by sideways overlap of unhybridized p orbitals and found in double and triple bonds.
  • Bond Characteristics:
    • σ bonds are strong and stable.
    • π bonds restrict rotation, affecting shape & reactivity.

Full Notes

Carbon is central to organic chemistry due to its ability to form four covalent bonds, a property stemming from its electronic configuration (1s2 2s2 2p2).

To achieve a stable octet, it forms four bonds by sharing its valence electrons. This tetravalency leads to a variety of stable and diverse organic molecules.

The Shapes of Carbon Compounds

The geometry of organic molecules is dictated by the type of hybrid orbitals formed by carbon atoms:

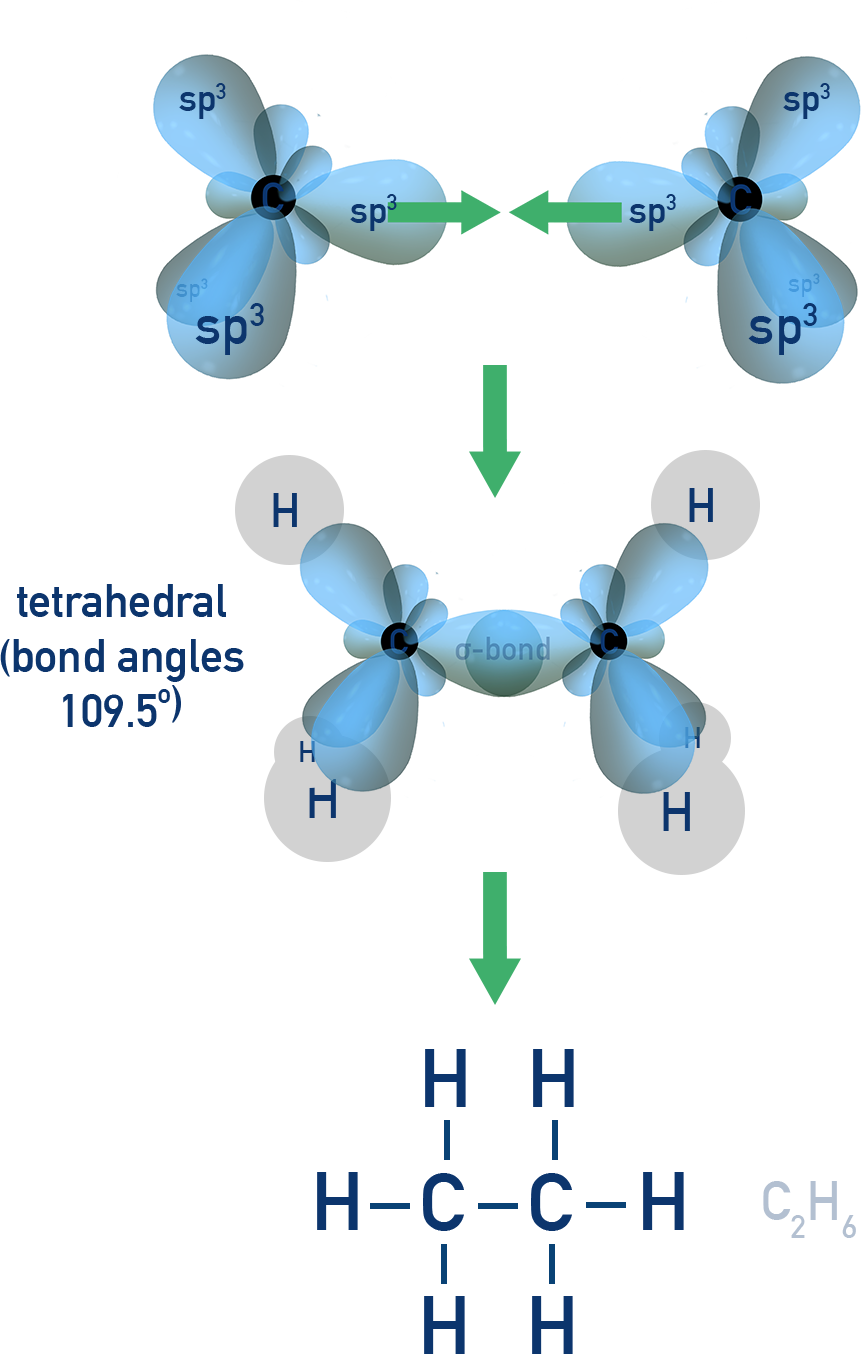

Ethane (CH3CH3):
Carbon undergoes sp3 hybridisation, forming four sigma (σ) bonds with four hydrogen atoms.

IB Chemistry NCERT Class 11 diagram showing sp3 hybridisation in methane with a tetrahedral shape and 109.5° bond angles.

Shape around carbon: Tetrahedral
Bond Angle: 109.5°

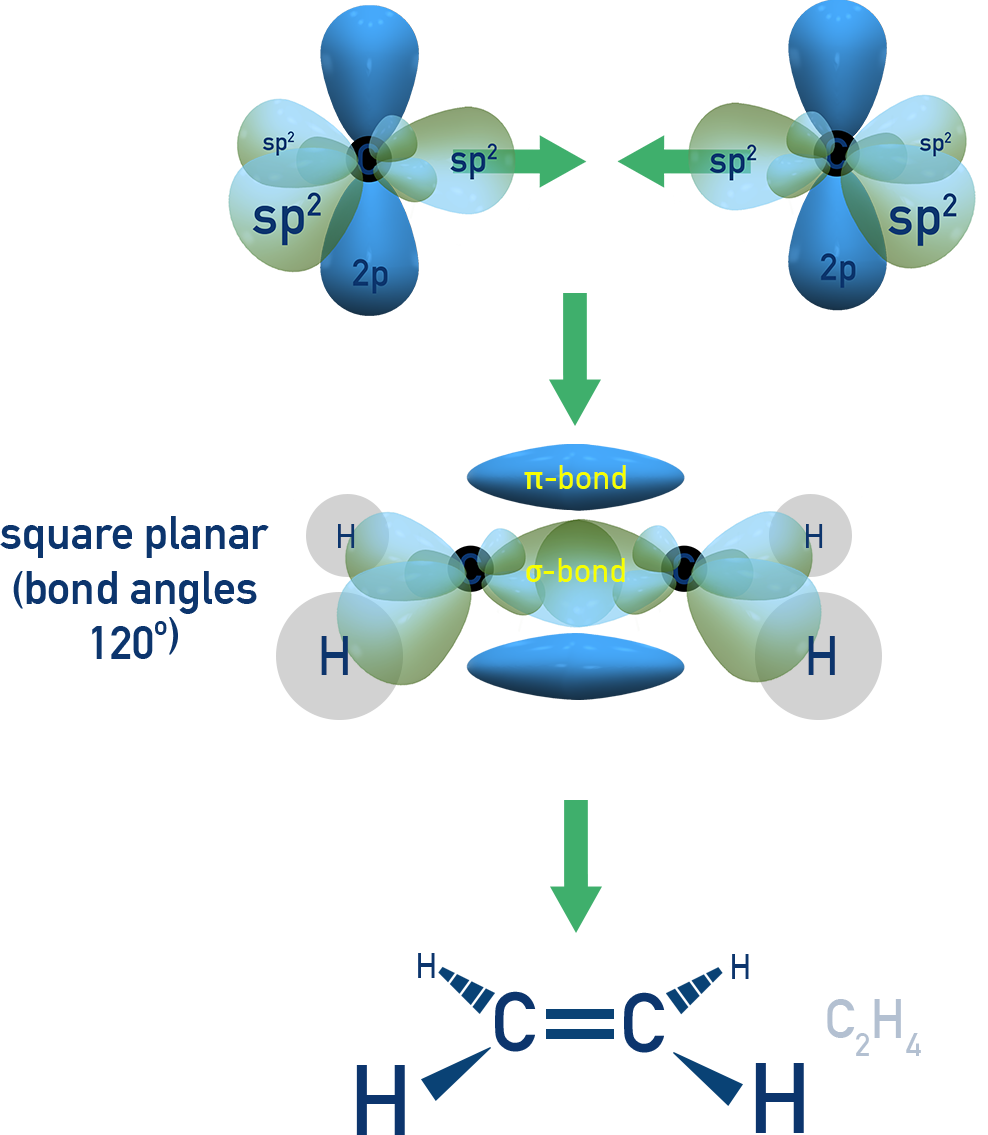

Ethene (C2H4):
Each carbon is sp2 hybridised — three sp2 orbitals form σ bonds (2 with H, 1 with C), and the unhybridised p orbital on each carbon overlaps sideways to form a π bond.

IB Chemistry NCERT Class 11 diagram showing sp2 hybridisation in ethene with a planar trigonal geometry and 120° bond angles; the p orbitals overlap to form a pi bond.

Shape: Planar
Bond Angle: 120°

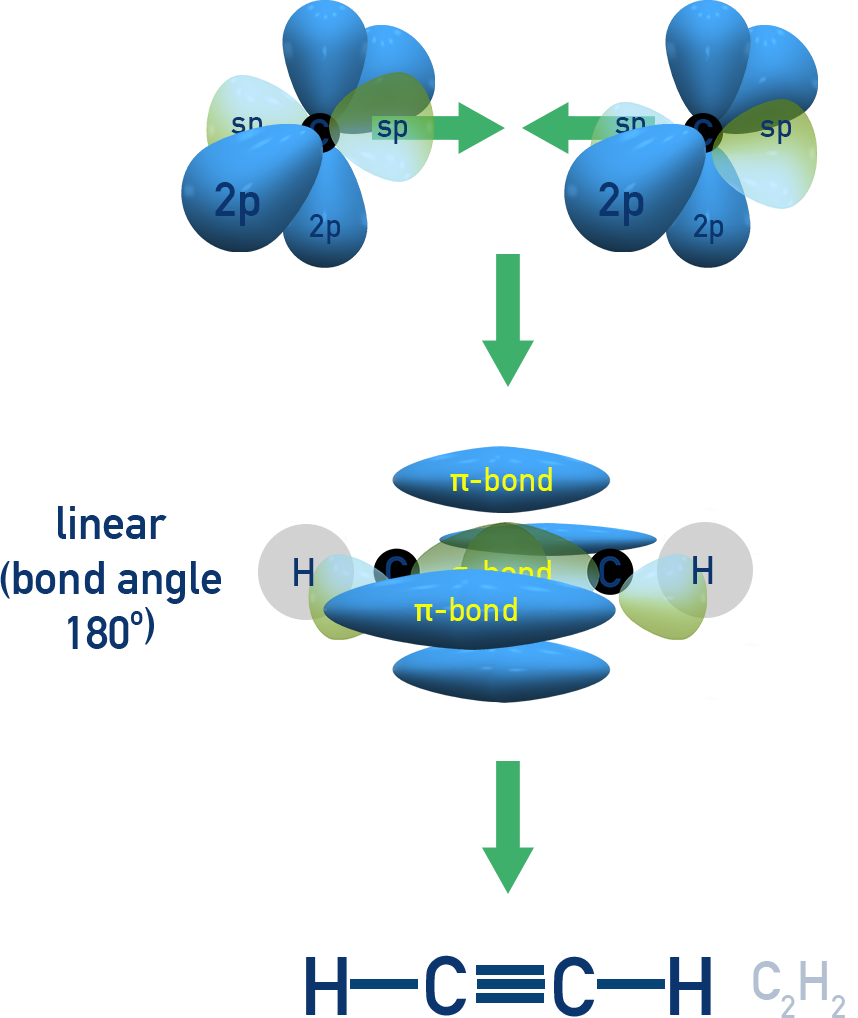

Ethyne (C2H2):
Carbon atoms undergo sp hybridisation — one sp orbital forms a σ bond with hydrogen, the other with the other carbon. The two unhybridised p orbitals on each carbon form two π bonds (a triple bond).

IB Chemistry NCERT Class 11 diagram showing sp hybridisation in ethyne with linear geometry and 180° bond angles; two orthogonal p orbitals form two pi bonds.

Shape: Linear
Bond Angle: 180°

These spatial arrangements are critical in determining the chemical and physical properties of organic compounds.

Some Characteristic Features of π Bonds

Formation:
π bonds result from the sideways (lateral) overlap of unhybridized p orbitals on adjacent carbon atoms. Unlike σ bonds, which involve head-on overlap, π bonds are weaker and more reactive.

Presence in Double/Triple Bonds:

Restricted Rotation:
The presence of a π bond restricts the rotation around the bond axis due to the overlap alignment. This affects molecular conformation and is important in understanding stereochemistry (e.g., cis-trans isomerism).

Electron Density:
π electrons are more exposed (above and below the plane of the atoms) making π bonds more reactive in electrophilic addition reactions.
