3.6 Organic Analysis

3.6.1 Identification of Functional Groups By Test-Tube Reactions 3.6.2 Mass Spectrometry 3.6.3 Infrared Spectroscopy

Mass Spectrometry

Specification Reference Organic chemistry, Organic analysis 3.3.6.2

Quick Notes

  • Mass spectrometry determines the molecular formula of a compound.
  • The molecular ion peak (M+) represents the molecular mass of the compound.
  • Precise atomic masses can be used to calculate the exact molecular formula.

Full Notes

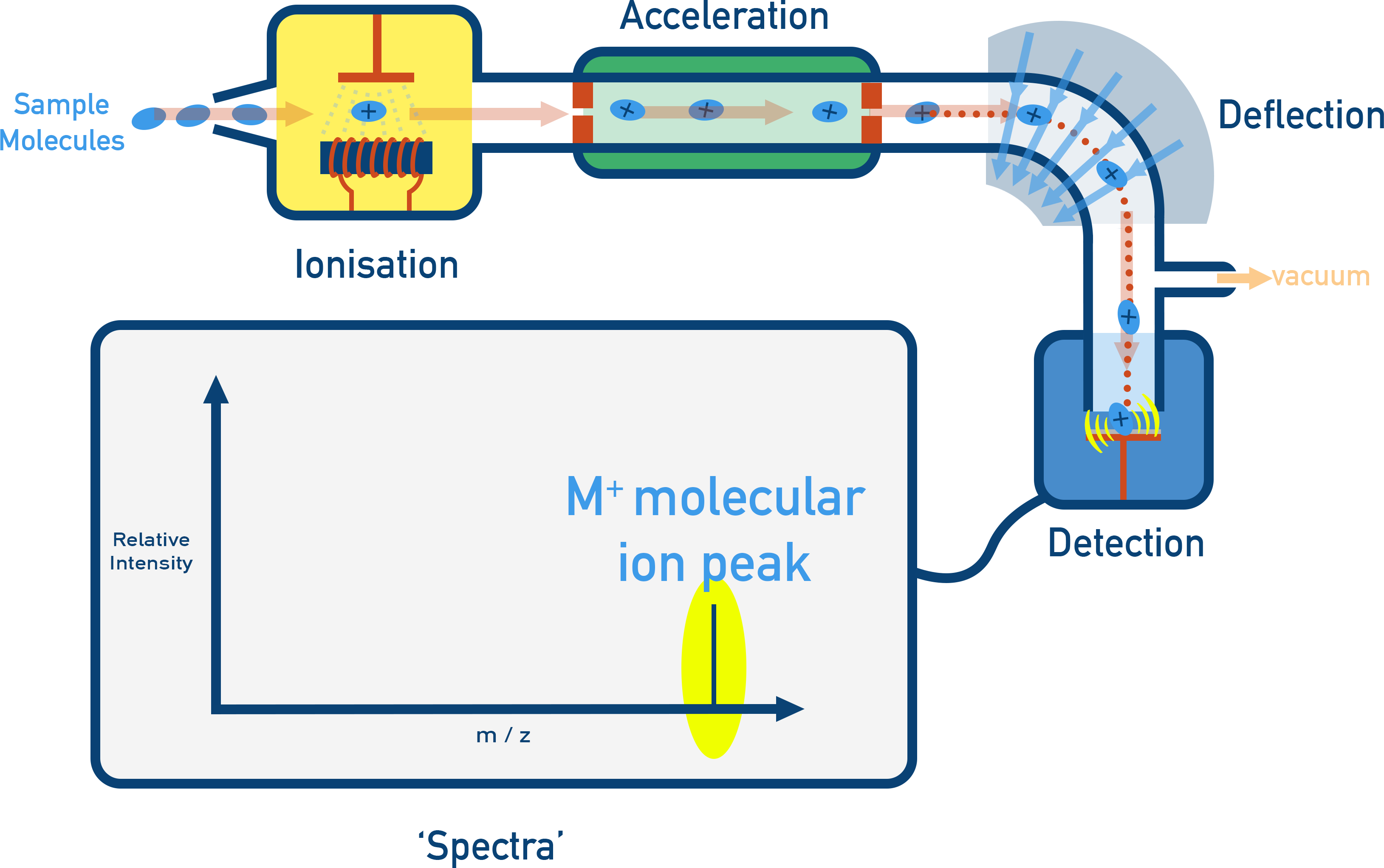

How Mass Spectrometry Works

A sample is ionised to form positive ions.

Ions are accelerated and separated based on their mass-to-charge ratio (m/z).

AQA A-Level Chemistry annotated mass spectrum showing the molecular ion peak M+ and fragment peaks at lower m/z values

The detector records the ions, producing a mass spectrum.

The molecular ion peak (M+) represents the relative molecular mass (Mr) of the compound being analysed.

Identifying the Molecular Formula

The molecular ion peak (M+) has the highest m/z value (peak furthest to the right on a spectra).

We can use precise atomic masses to confirm the molecular formula as only a specific combination will give the exact value of the molecular ion peak.

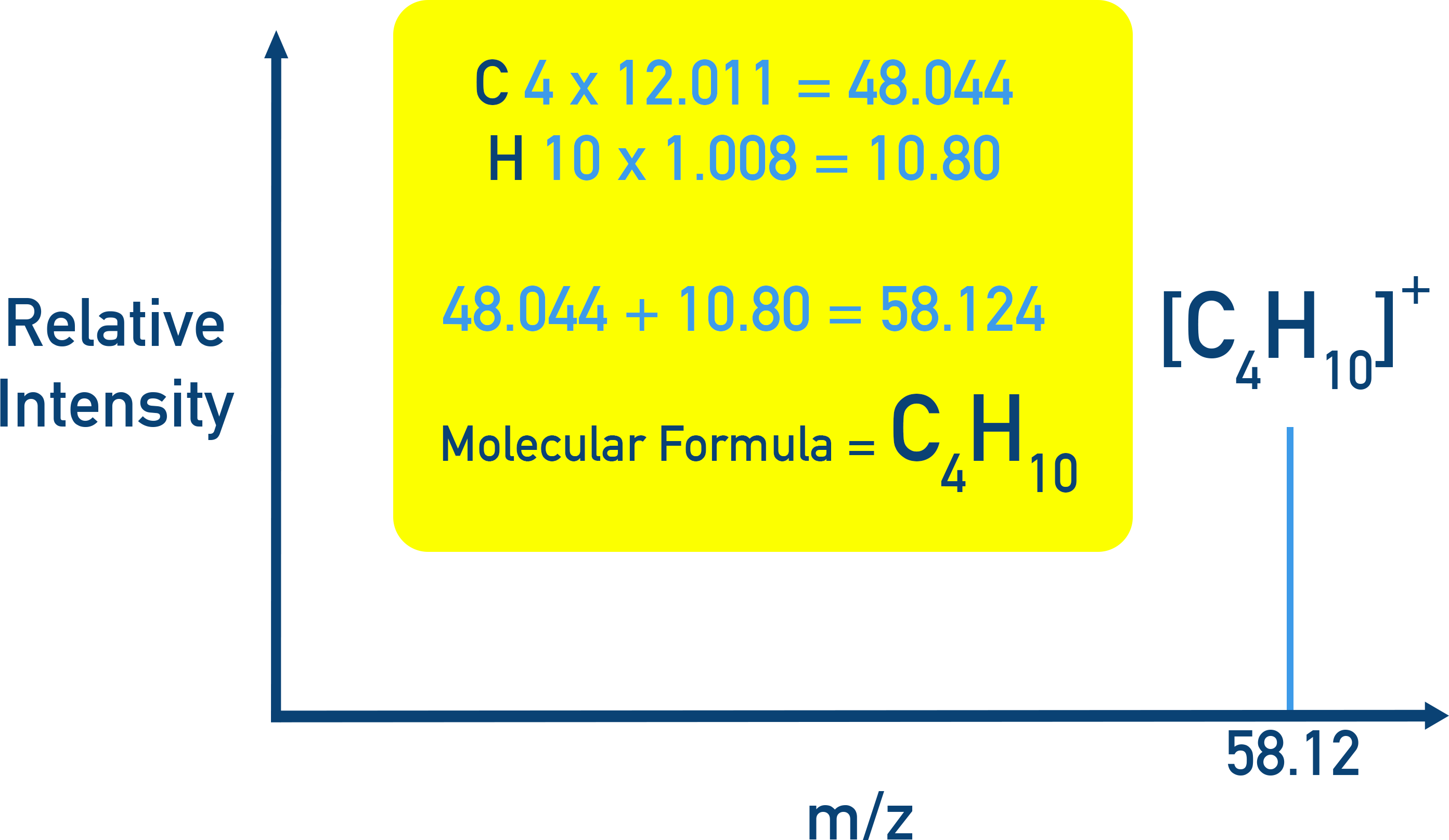

Worked Example

Determine the molecular formula of a compound with an M+ peak of 58.12

AQA A-Level Chemistry example calculation showing that M+ 58.12 corresponds to butane C4H10 using precise atomic masses

Summary
