Mass Number and Isotopes
Quick Notes
- Atomic number (Z): number of protons.
- In a neutral atom the number of electrons = number of protons.
- In an ion, the number of electrons is based on the charge of the ion.
- Mass number (A): number of protons + neutrons.
- Isotopes: same number of protons but different numbers of neutrons.
- Mass spectrometry determines relative isotopic mass and abundance.
- A time of flight (TOF) mass spectrometer has four main stages:
- Ionisation
- Acceleration
- Drift
- Detection
- Relative atomic mass (Ar) can be calculated using data from a mass spectrum.
Full Notes
Mass number, isotopes and mass spectrometry have been outlined in more detail at atomic structure, mass spectrometry, and TOF mass spectrometry.
This page is just what you need to know for AQA A-level Chemistry :)
Atomic Structure Recap
- Protons: positively charged (+1), found in the nucleus.
- Neutrons: neutral (0), found in the nucleus.
- Electrons: negatively charged (−1), found in orbitals around the nucleus.

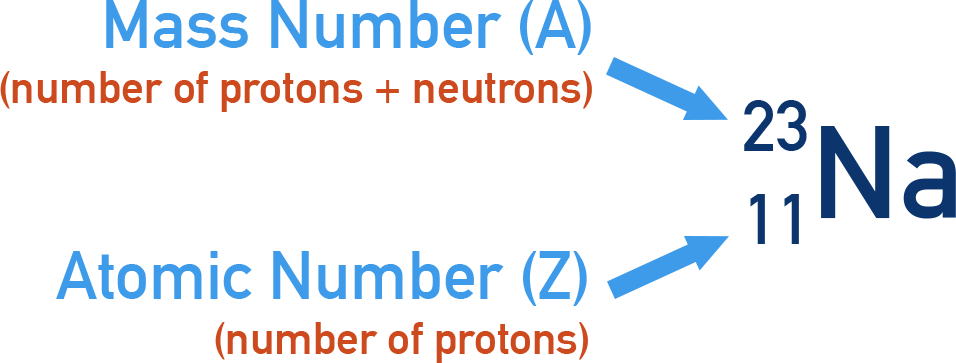

Atomic number (Z) = number of protons.
Mass number (A) = number of protons + neutrons.
Example:
For sodium-23:
- Z = 11 → 11 protons
- A = 23 → 23 − 11 = 12 neutrons
- If neutral atom → 11 electrons

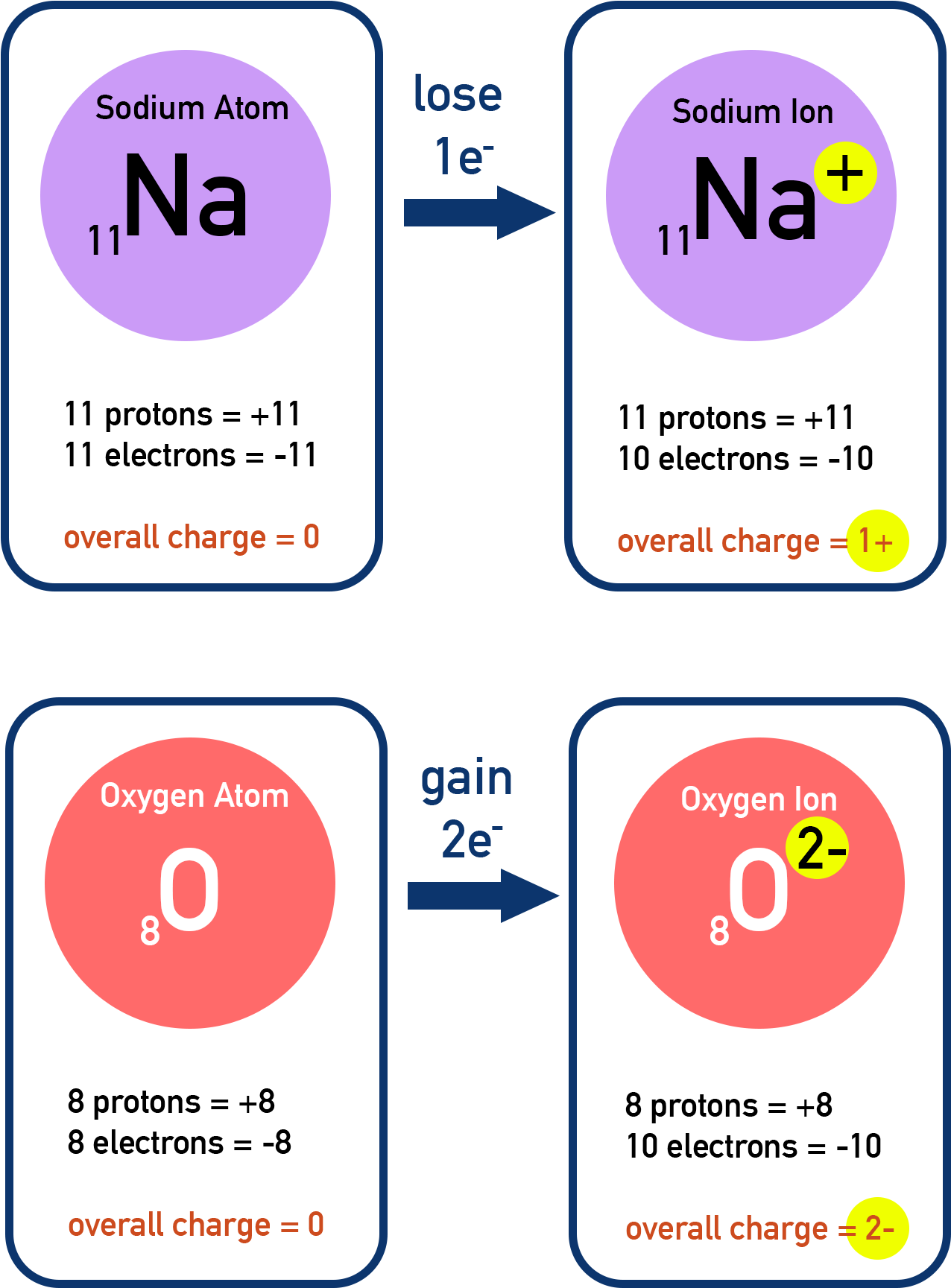

For ions:
- Positive ions lose electrons (e.g. Na+ has 11 protons and 10 electrons).
- Negative ions gain electrons (e.g. O2− has 8 protons and 10 electrons).
Isotopes
Isotopes are atoms of the same element with:
- The same number of protons
- Different numbers of neutrons
This means they have different mass numbers.
Example:

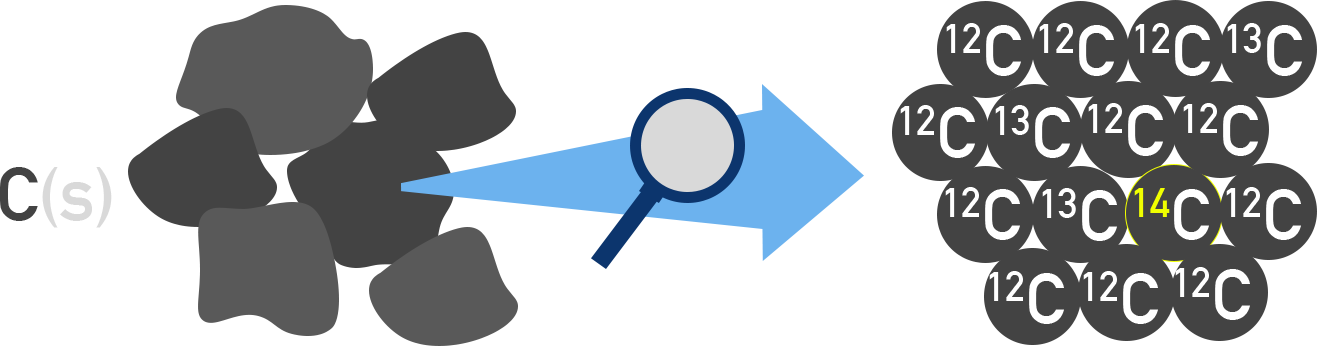

Carbon contains naturally occurring isotopes including Carbon-12, Carbon-13 and Carbon-14:
- All have 6 protons.
- C-12 has 6 neutrons, C-13 has 7 neutrons, C-14 has 8 neutrons.
Isotopes have identical chemical properties (same electron structure), but different physical properties (e.g. mass, rate of diffusion).
Time of Flight (TOF) Mass Spectrometry
A more detailed explanation is given here.
Used to determine:
- The relative isotopic mass
- The relative abundance of isotopes
- The relative molecular mass (Mr) of compounds
- The identity of unknown elements
Stages in a TOF Mass Spectrometer:
- Ionisation
- Sample is turned into ions. There are two main methods used:
- Electron impact: X → X+ + e−
electron is removed from sample to make it a positively charged ion - Electrospray: X + H+ → XH+
sample is 'given' a proton, H+, to make it a positively charged ion
- Acceleration – ions are accelerated by an electric field so all ions have the same kinetic energy.
- Ion Drift – ions pass through a drift region; lighter ions travel faster than heavier ions.
- Detection – ions hit a detector and generate a current; time is used to calculate m/z; bigger current = greater abundance.
Interpreting a Mass Spectrum
- m/z values = mass-to-charge ratio.
- Peak height or area = relative abundance.
- For atoms of an element being analysed, a spectrum shows isotopes (each peak is a different isotope).
- For molecules being analysed, the peak with highest m/z = molecular ion (M+) and represents the relative molecular mass of the sample (assuming an ion charge of 1+).
Calculating Relative Atomic Mass (Ar)
We can calculate the relative atomic mass of an element using the following formula:
Ar = (Σ (isotopic mass × % abundance)) / 100
Example:Chlorine has two isotopes:
Ar = (35 × 75 + 37 × 25) / 100
Ar = (2625 + 925) / 100 = 35.5
6. Summary
- Atomic number (Z) = protons; Mass number (A) = protons + neutrons.
- Isotopes are atoms with the same number of protons, different number of neutrons.
- Ions are atoms that have lost or gained electrons.
- TOF mass spectrometry: ionisation, acceleration, drift, detection.
- A mass spectrum can be used to determine isotopic masses of an element and the relative molecular mass of a molecule.
- Relative atomic mass (Ar) calculated from isotopic data.
Ar = (Σ (isotopic mass × % abundance)) / 100
