PRACTICAL 12 – Thin-Layer Chromatography (TLC)

Aim:
To separate and identify the components in various painkiller tablets (aspirin, caffeine, paracetamol, ibuprofen, and a combination tablet like Anadin Extra) using thin-layer chromatography (TLC).

Overview:

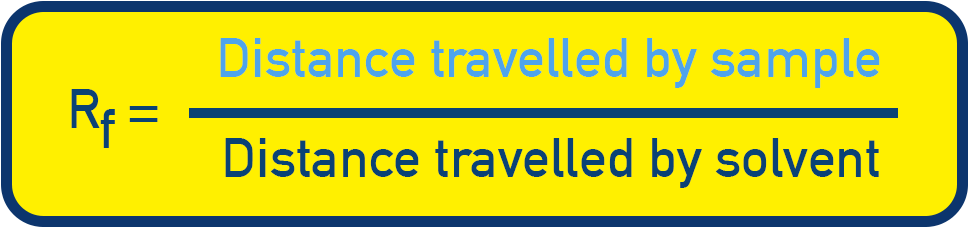

Thin-layer chromatography (TLC) separates compounds based on their differing affinities for the mobile phase (solvent) and stationary phase (silica or alumina). Compounds with stronger solvent affinity move further up the plate, while those strongly interacting with the stationary phase move less. The separation is quantified using the Rf value. AQA A-Level Chemistry expression showing Rf value = distance moved by substance divided by distance moved by solvent front.


Apparatus and Materials

Preparation of Samples

  1. Crush each tablet (e.g. aspirin) using pestle and mortar.
  2. Dissolve ~0.1 g of powder in 0.5 cm³ ethanol (7.0 cm³ for caffeine).
  3. Repeat for paracetamol, ibuprofen, and Anadin Extra (mixture).

Thin-Layer Chromatography Procedure

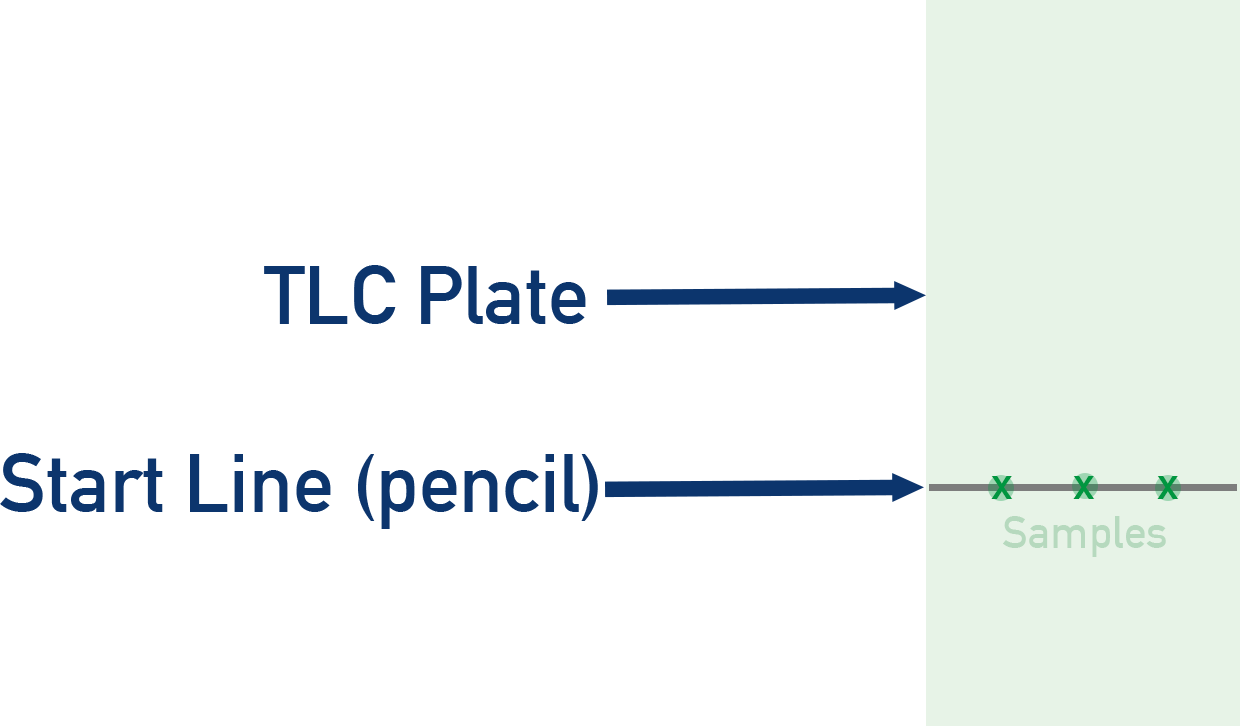

AQA A-Level Chemistry TLC plate with pencil baseline, sample spots marked evenly, applied using capillaries.
  1. Draw a baseline 1 cm from bottom of TLC plate in pencil.
  2. Mark 5 spots evenly along line, one for each sample.
  3. Spot each sample using capillary tube, drying between drops.
  4. Prepare developing chamber with ~10 cm³ ethyl acetate, cover with lid.
  5. Ensure solvent is below baseline, then place plate vertically in chamber.

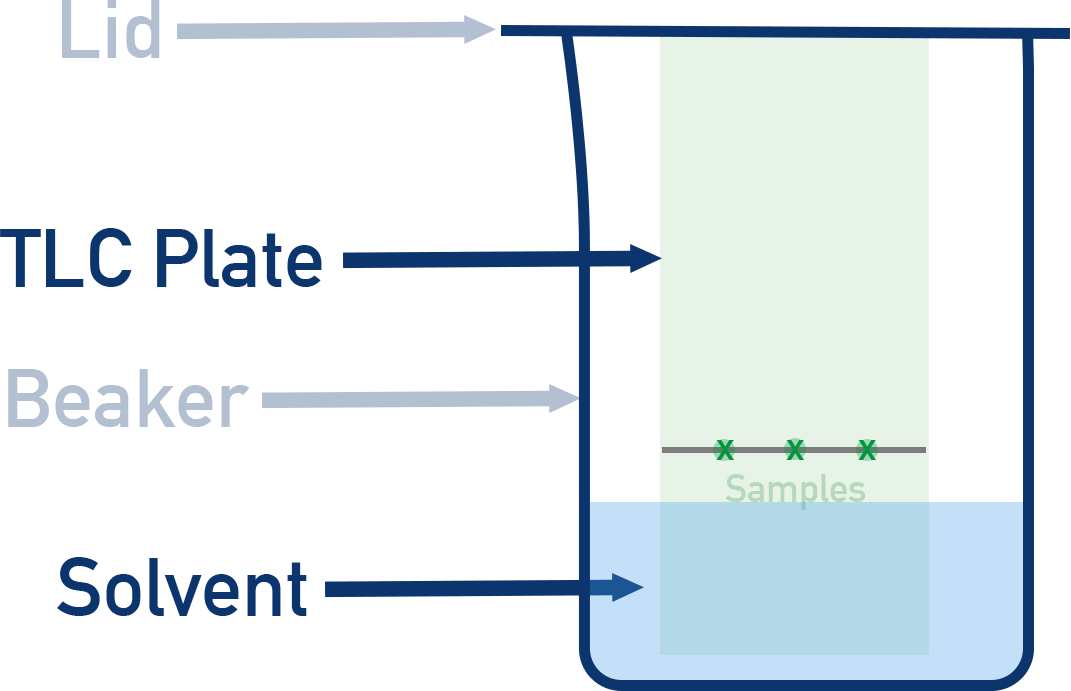

AQA A-Level Chemistry TLC developing chamber with solvent rising up plate.
  1. Allow solvent to rise to ~1 cm from top, remove plate, mark solvent front.
  2. Dry plate in fume cupboard.
  3. Spray with locating agent (e.g. ninhydrin) or view under UV lamp.
  4. Draw circles around spots lightly in pencil.

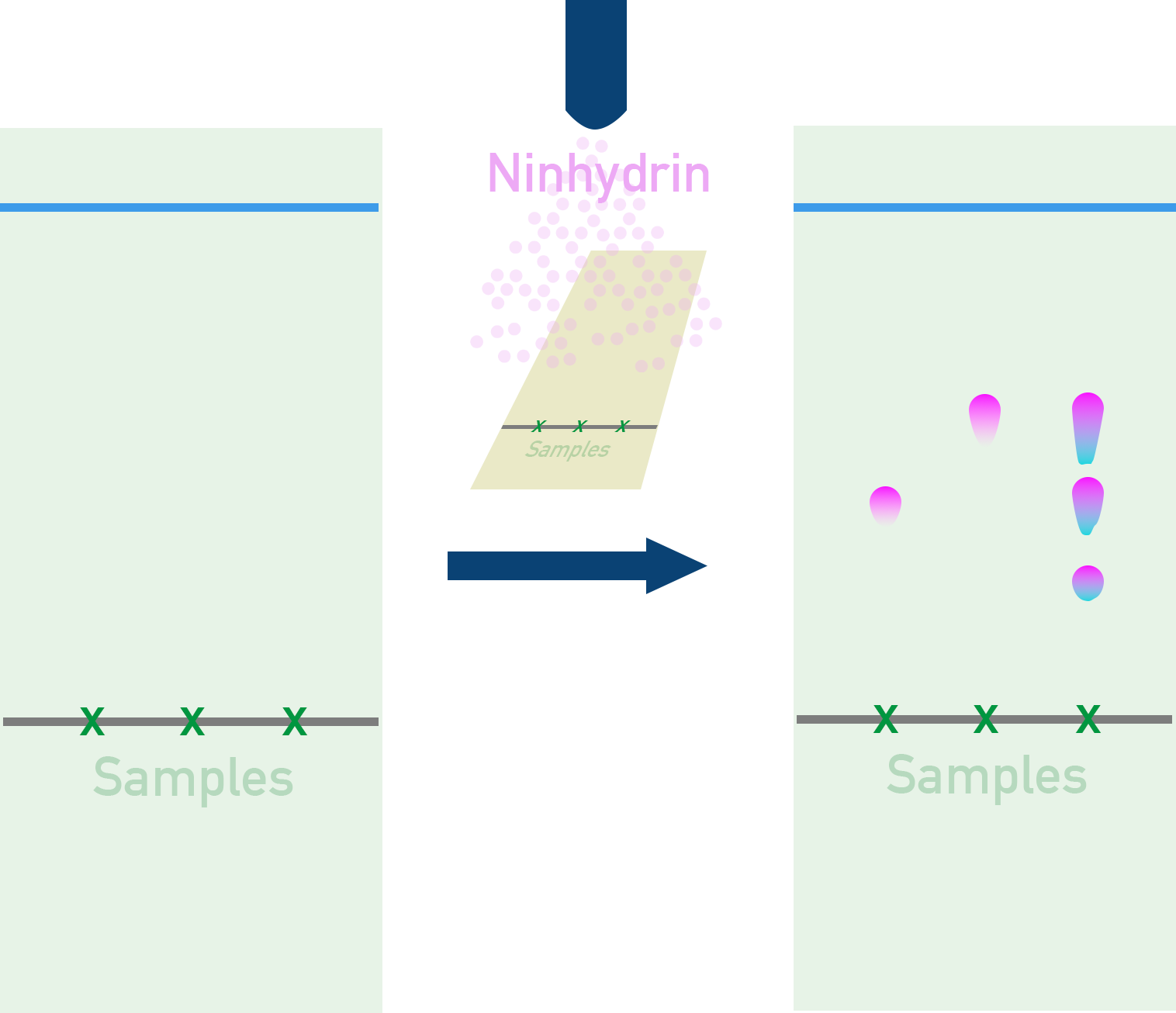

AQA A-Level Chemistry TLC plate visualised under UV light or with a locating agent, with spots circled in pencil.
  1. Measure distances and calculate Rf values.

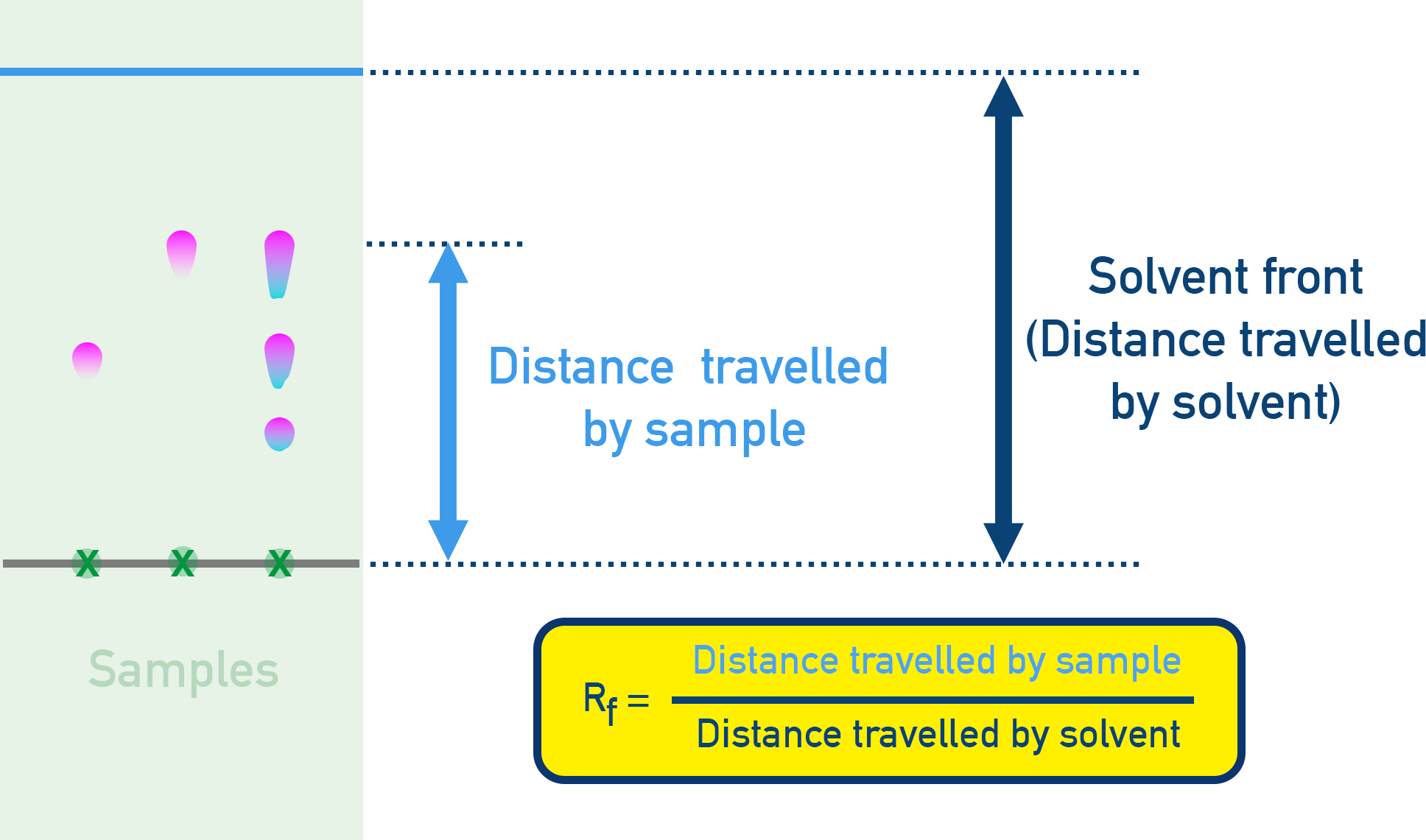

AQA A-Level Chemistry TLC showing measurement of Rf values based on distances travelled by spots relative to solvent front.
