Particulate Representations of Equations

Learning Objective 4.3.A Represent a given chemical reaction or physical process with a consistent particulate model.

Quick Notes

  • Particulate models use dots, circles, or shapes to represent atoms, ions, or molecules at the particle level.
  • These models help visualize how atoms rearrange during chemical reactions or physical processes.
  • A consistent particulate model should:
    • Accurately reflect the chemical formulas of substances.
    • Show correct ratios of reactants and products, based on a balanced chemical equation.
    • Use distinct symbols or shading to represent different elements or ions.
  • Useful for showing:
    • Conservation of mass (number of atoms)
    • Conservation of charge (especially in ionic reactions)
    • Phase (solid, liquid, gas, aqueous)

Full Notes

Particulate representations (also called particulate-level diagrams or molecular-level models) illustrate chemical and physical changes by showing individual particles – atoms, molecules, and ions – interacting and rearranging.

These visual models are especially helpful for understanding:

What Makes a Good Particulate Representation?

Example: Precipitation Reaction

Balanced equation: AgNO₃(aq) + NaCl(aq) → AgCl(s) + NaNO₃(aq)

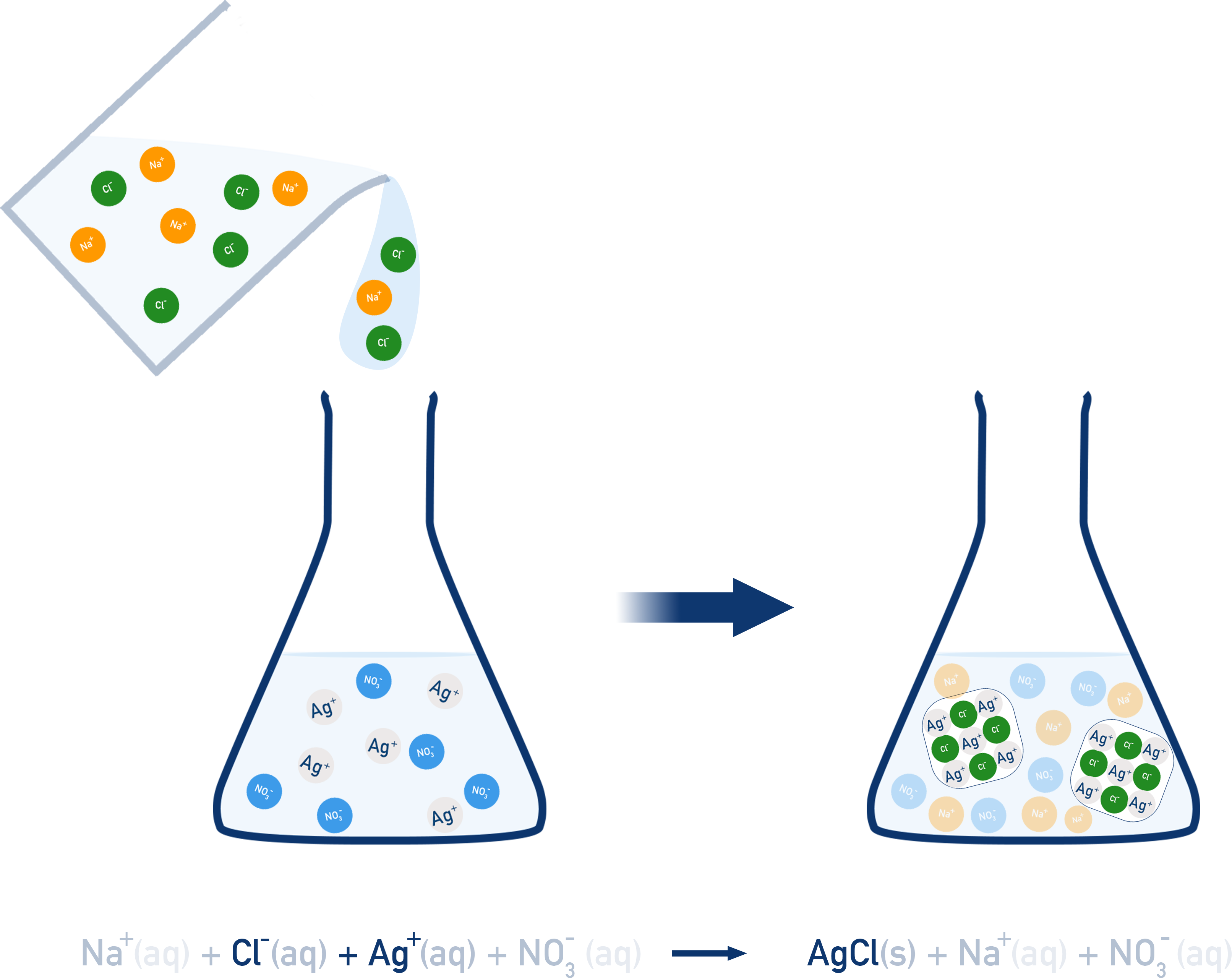

Particulate representation of silver nitrate and sodium chloride reaction forming silver chloride precipitate and sodium nitrate in solution.

Before: silver ions (Ag⁺) and nitrate ions (NO₃⁻) floating separately in solution with sodium (Na⁺) and chloride ions (Cl⁻).
After: silver ions and chloride ions combine to form solid AgCl (clustered together); Na⁺ and NO₃⁻ remain free in solution (spectator ions).

Net ionic equation: Ag⁺(aq) + Cl⁻(aq) → AgCl(s)

The particulate model shows:

Physical Changes Can Also Be Represented

Particles in solid are shown tightly packed in a fixed structure.
In liquid, particles are still close but move freely — not in fixed positions.

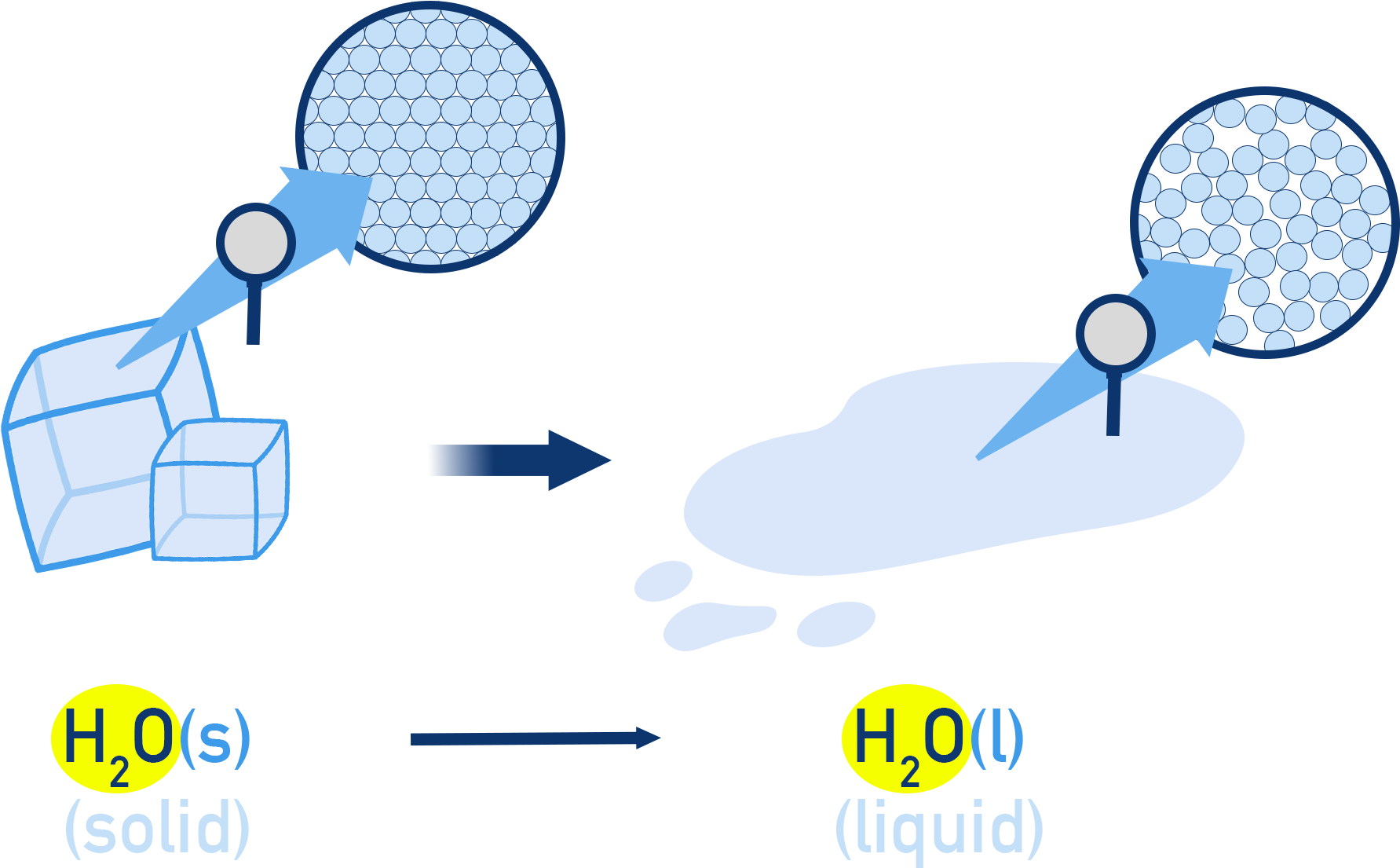

Particulate model showing solid water (ice) particles arranged in a fixed structure changing to liquid water particles moving freely.

Example:H2O(s) → H2O(l)

Note: This is a simplification of the arrangement of molecules in solid ice — they are actually less dense than molecules in liquid water (see water and ice bonding).
