Dynamic Equilibrium

Specification Reference R2.3.1

Quick Notes:

  • Dynamic equilibrium occurs in a closed system when the rate of the forward reaction equals the rate of the backward reaction.
  • There is no observable change in macroscopic properties (e.g. colour, pressure, concentration).
  • The system is dynamic: reactions are still occurring, but at equal and opposite rates.
  • Equilibrium can occur in physical changes (e.g. evaporation/condensation) and chemical reactions.

Full Notes:

What Is Dynamic Equilibrium?

A system is in dynamic equilibrium when the rate of the forward reaction equals the rate of the reverse reaction.

Dynamic equilibrium can only be reached in a closed system (no matter can enter or leave).

The concentrations of all species remain constant over time, although particles continue to react.

Dynamic refers to the fact that reactions are ongoing and equilibrium because the system appears unchanged at the macroscopic level.

Physical and Chemical Equilibria

Equilibria can involve either physical changes (like phase changes) or chemical reactions.

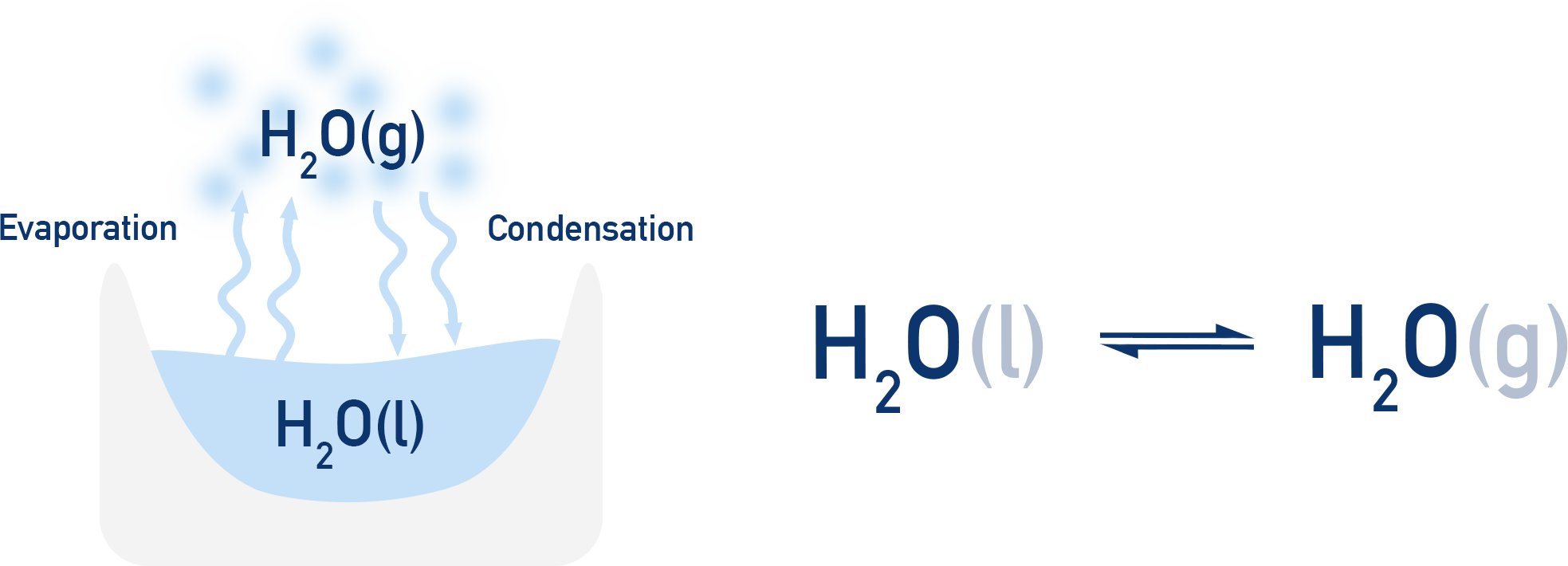

Example Physical equilibrium: Water Evaporating

Water ⇌ vapour
H2O(l) ⇌ H2O(g)

IB Chemistry diagram showing dynamic equilibrium between liquid water and water vapour, where evaporation and condensation occur at equal rates.

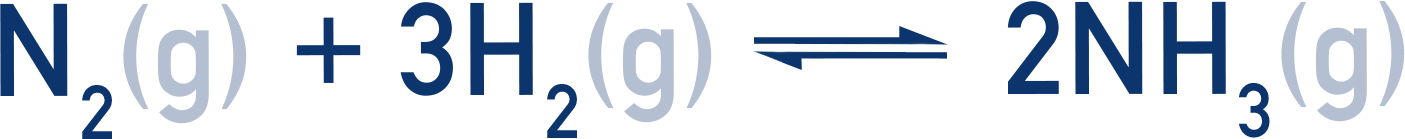

Example Chemical equilibrium: The Haber Process

IB Chemistry diagram showing the Haber process with nitrogen and hydrogen reacting to form ammonia, in dynamic equilibrium.

Key Characteristics of Equilibrium

Summary
