Coordination (Dative) Bonds

Specification Reference S2.2.3

Quick Notes

  • A coordination bond (dative covalent bond) is a covalent bond where both electrons come from the same atom.
  • Once formed, it behaves like a normal covalent bond in terms of length and strength.
  • Represented with an arrow (→) showing electron donation.
  • Examples:
    • Ammonium ion (NH₄⁺)
    • Aluminium chloride dimer (Al₂Cl₆)
    • Transition metal complexes (e.g. [Cu(NH₃)₄]²⁺)
  • In Lewis acid–base theory:
    • Donor atom = Lewis base (electron pair donor)
    • Acceptor atom = Lewis acid (electron pair acceptor)

Full Notes

What Is a Coordination Bond?

A coordination (dative covalent) bond is a special type of covalent bond where both electrons in the bond come from the same atom.

Once formed, it is identical to a normal covalent bond in strength and length.

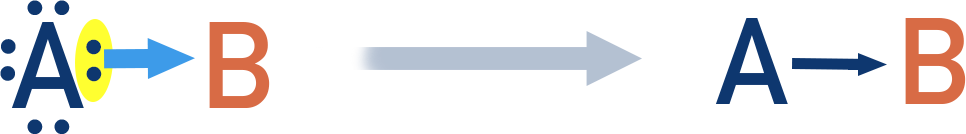

IB Chemistry diagram showing the arrow notation for a coordinate (dative covalent) bond.

Representation: The bond is shown by an arrow (→) pointing from the donor atom (which provides both electrons) to the acceptor atom.

Examples

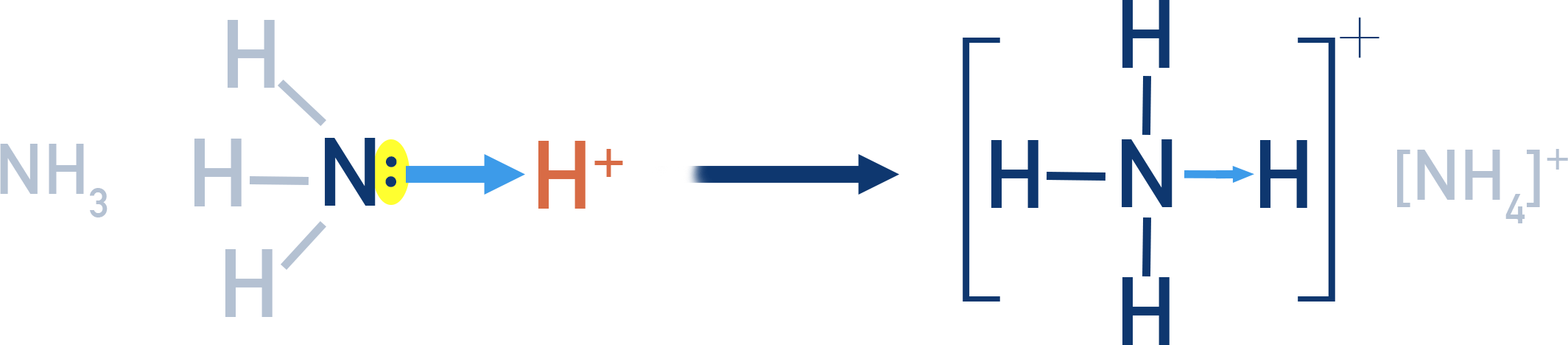

IB Chemistry example of the ammonium ion NH4+ showing nitrogen donating a lone pair to hydrogen to form a coordinate bond.

Ammonium ion (NH₄⁺):
Ammonia (NH₃) donates a lone pair from nitrogen to a H⁺ ion. This forms a coordinate bond, resulting in NH₄⁺.

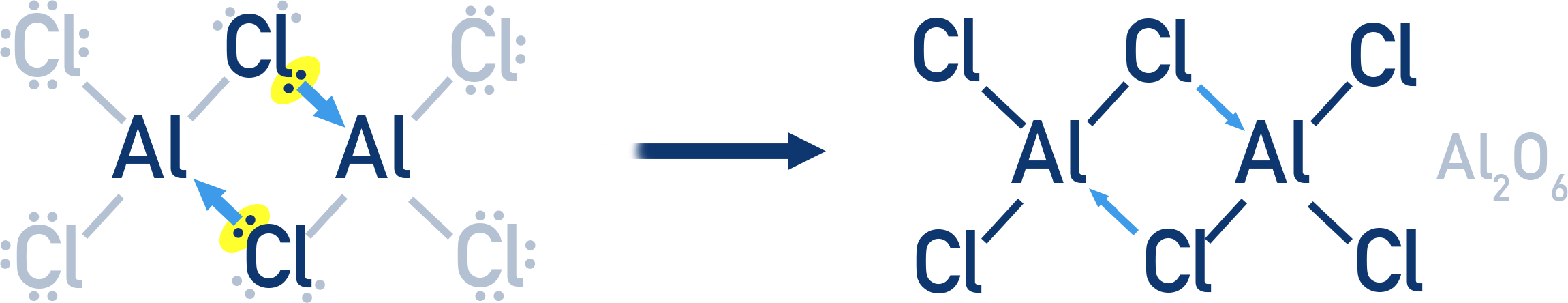

IB Chemistry diagram of aluminium chloride dimer Al2Cl6 showing coordinate bonds between aluminium and chlorine atoms.

Aluminium chloride (Al₂Cl₆):
Two AlCl₃ units join via coordinate bonds from Cl atoms donating lone pairs to electron-deficient Al atoms.

Identifying Coordination Bonds

To identify a coordination bond:

Transition Metal Complexes (AHL Link)

Transition metals often form coordination bonds with ligands (molecules or ions with lone pairs). This forms complex ions.

For exampleWater (H₂O) can donate a lone pair from oxygen to a metal ion.

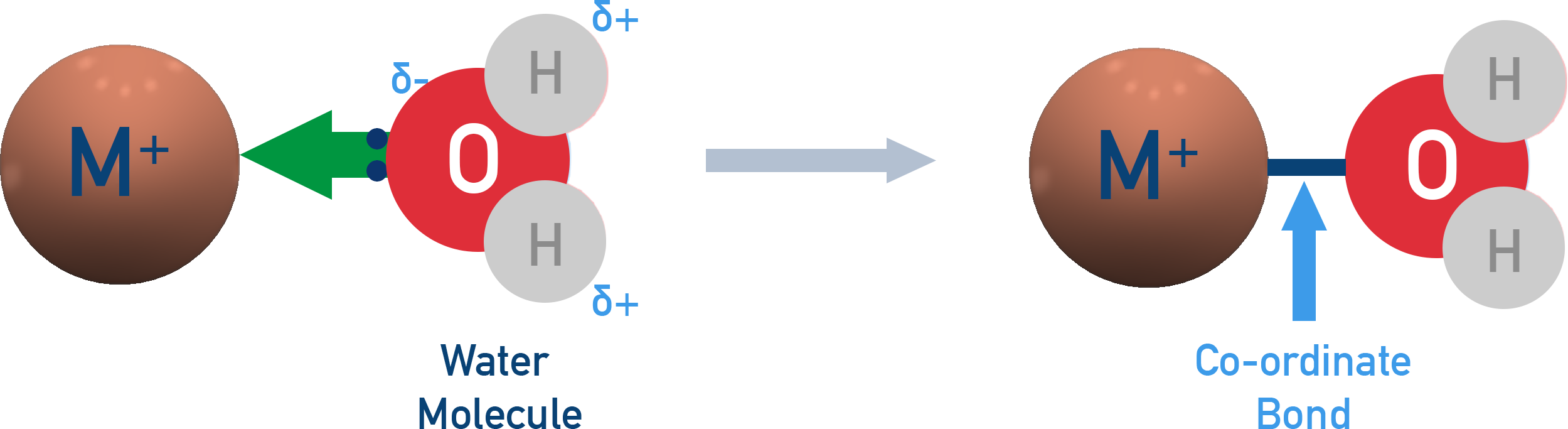

IB Chemistry diagram of a water molecule acting as a ligand, donating a lone pair to a transition metal ion.

Often, more than one ligand can bond to the same metal ion, forming a complex ion.

For exampleSix water molecules can get close enough to a copper ion to form a hexa-aqua copper (II) ion, [Cu(H₂O)₆]²⁺.

IB Chemistry diagram of the [Cu(H2O)6]2+ complex showing six coordinate bonds formed with water ligands.

Connection to Lewis Theory

Coordination bonds can be described with Lewis acid–base theory:

This explains why transition metals can form stable complexes with ligands – the coordinate bond is essentially a Lewis acid–base interaction, with the ligand acting as as a lewis base and the metal ion acting as a lewis acid.

Summary
