Formal Charge and Lewis Structures HL Only

Specification Reference S2.2.14

Quick Notes:

  • Formal charge is a tool for evaluating the most likely Lewis structure of a species.
  • It assumes electrons in bonds are shared equally.
  • Formula: Formal charge
    = (valence electrons) − (non-bonding electrons) − ½(bonding electrons)
  • The most stable Lewis structure:
    • Has the lowest total formal charge
    • Has formal charges closest to zero
    • Places negative charges on the more electronegative atoms

Full Notes:

What Is Formal Charge?

Formal charge (FC) is a theoretical charge on an atom, assuming electrons are shared equally in bonds in a compound.

It helps identify the most accurate Lewis structure and understand electron distribution in a molecule or ion.

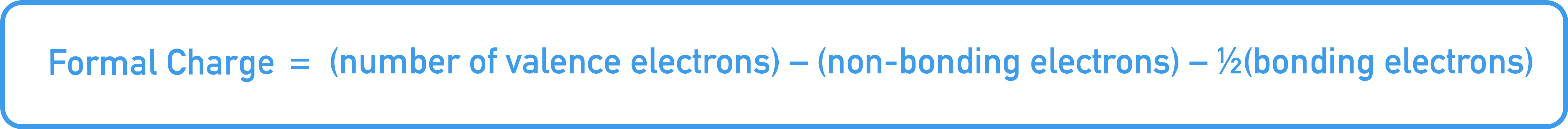

Formal Charge Formula

To calculate formal charge for any atom:

IB Chemistry formal charge equation showing valence electrons minus non-bonding electrons minus half bonding electrons.

Example:The Nitrate Ion (NO3−)

IB Chemistry nitrate ion resonance structure showing nitrogen double bonded to one oxygen and single bonded to two other oxygens with charges.

In the nitrate ion:

This means overall the charge of the nitrate ion is −1 (+1 + (−1) + (−1) = −1).

Guidelines for Using Formal Charge

A preferred Lewis structure will:

Summary
