Electroplating and Electrode Reactions HL Only

Specification Reference R3.2.16

Quick Notes

  • Electroplating uses an electrolytic cell to deposit a thin metal layer onto an object.
  • The object to be plated is the cathode (negative electrode).
  • The anode is usually made of the metal being plated.
  • The electrolyte is a solution containing ions of the plating metal.
  • Reduction occurs at the cathode where metal ions gain electrons and are deposited.
  • Oxidation occurs at the anode where metal atoms lose electrons to replenish ions in solution.

Full Notes

Electroplating is a process that uses electrolysis to coat the surface of a metal object with a thin layer of another metal.

It’s widely used for a variety of reasons - such as to improve the appearance or prevent corrosion.

Basic Setup of an Electrolytic Cell for Electroplating

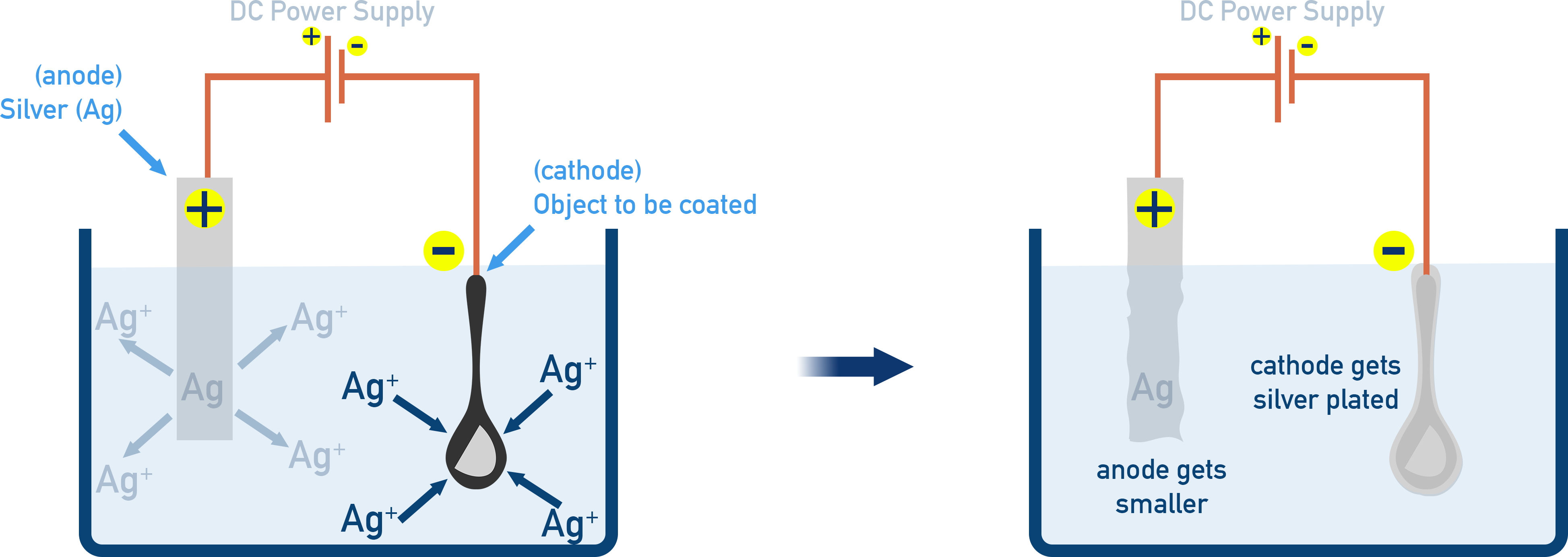

IB Chemistry HL electroplating setup showing cathode as object, silver anode, and electrolyte solution.

Components:

Current flow: Electrons flow from the anode to the cathode via external circuit.

Example: Silver Electroplating

Example Silver Electroplating

Cathode (reduction): Ag+(aq) + e⁻ → Ag(s)
(Silver ions from solution are deposited on the object)

Anode (oxidation): Ag(s) → Ag+(aq) + e⁻
(Silver anode gets smaller and Ag+ replenished in solution)

Net result: A thin layer of silver builds up on the cathode.

Other Common Electroplating Reactions

Summary
