Nucleophilic Substitution Reactions

Specification Reference R3.4.2

Quick Notes

  • In a nucleophilic substitution reaction, a nucleophile donates an electron pair to a carbon atom bonded to a leaving group.
  • A new bond forms as the old bond breaks, removing the leaving group.
  • The reaction involves electron pair movement, shown with curly arrows.
  • Typical leaving groups include halide ions like Cl, Br, I.
  • Common nucleophiles: OH, CN, NH3.
  • Nucleophilic substitution is common in halogenoalkane reactions.

Full Notes

In a nucleophilic substitution reaction, a nucleophile donates an electron pair to form a new bond, as another bond breaks producing a leaving group.

Overview of the Reaction

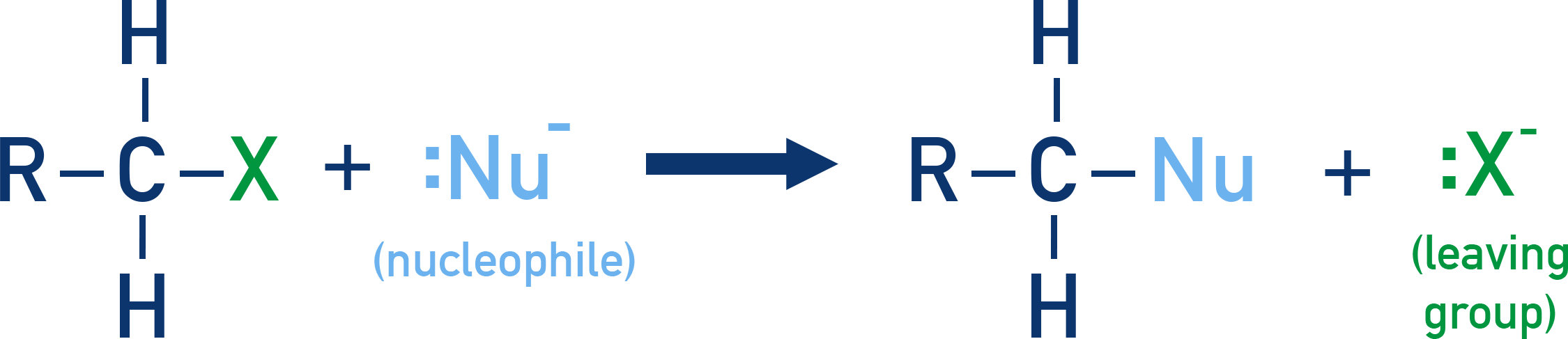

IB Chemistry diagram showing nucleophile attacking carbon bonded to a leaving group.

The nucleophile attacks the carbon atom that is bonded to the leaving group, forming a new covalent bond and displacing the leaving group.

Mechanism

Nucleophilic substitution can be represented using a curly arrow mechanism, where each full arrow shows the movement of an electron pair.

The arrow starts from the electron source (typically a lone pair or bond) and points to where the electrons go – forming or breaking bonds.

One common such mechanism is the SN2 pathway. This occurs in primary and some secondary halogenoalkanes, shown below.

IB Chemistry curly arrow mechanism for nucleophilic substitution reaction.
  1. Curly arrow from nucleophile to δ+ carbon.
  2. Curly arrow from C–X bond to halogen (X leaves).
  3. New bond forms between nucleophile and carbon.

For Example:Halogenoalkane with OH

IB Chemistry nucleophilic substitution example showing halogenoalkane hydrolysing to alcohol with aqueous NaOH.

Reagent: Aqueous NaOH/KOH.
Conditions: Warm, reflux.

Summary
