Expanded Octet and VSEPR Geometry HL Only

Specification Reference S2.2.13

Quick Notes

  • Some atoms (typically in period 3 or higher) can have more than 8 electrons in their valence shell – this is called an expanded octet.
  • These species can have 5 or 6 electron domains around the central atom.
  • We can still use VSEPR theory to deduce:
    • Electron domain geometry (arrangement of all regions of electron density)
    • Molecular geometry (actual shape based on bonded atoms only)
  • Common geometries include:
    • 5 domains → trigonal bipyramidal (e.g. PCl5)
    • 6 domains → octahedral (e.g. SF6)

Full Notes

What Is an Expanded Octet?

The octet rule limits atoms to 8 electrons in their outer shell. However, atoms in period 3 and beyond have d orbitals available and can accommodate more than 8 electrons.

These atoms can form molecules with 5 or 6 electron domains around the central atom, giving an expanded octet.

For Example:

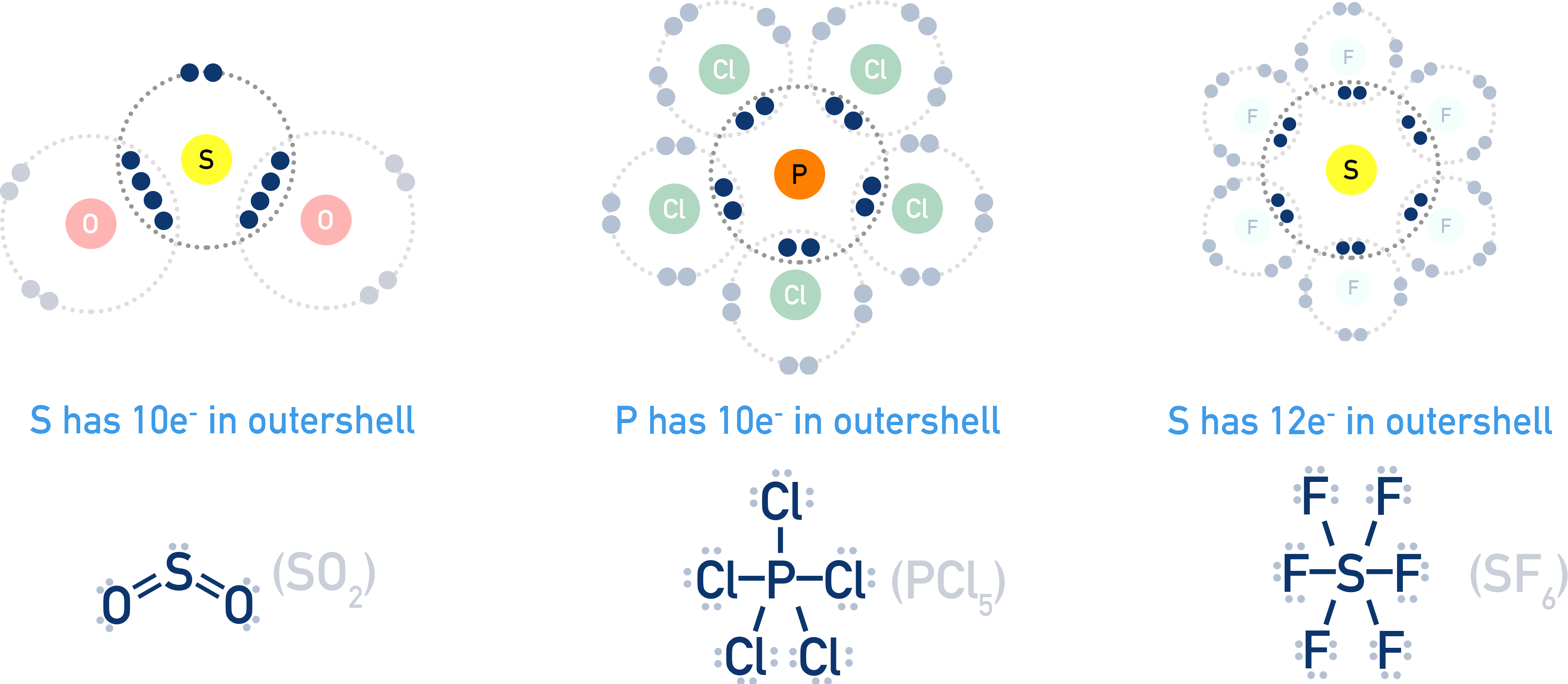

IB Chemistry diagram showing atoms such as sulfur expanding their octet beyond 8 electrons.

VSEPR Predictions for 5 and 6 Electron Domains

We can use the Valence Shell Electron Pair Repulsion (VSEPR see S2.2.4) model to predict:

Species with 5 Electron Domains (Trigonal Bipyramidal Base Geometry)

IB Chemistry VSEPR diagram showing trigonal bipyramidal arrangement with 5 electron domains.
Electron Domains Electron Domain Geometry Molecular Geometry Example
5 bonding pairs Trigonal bipyramidal Trigonal bipyramidal PCl5
4 bonding + 1 lone pair Trigonal bipyramidal See-saw SF4
3 bonding + 2 lone pairs Trigonal bipyramidal T-shaped ClF3
2 bonding + 3 lone pairs Trigonal bipyramidal Linear XeF2

Species with 6 Electron Domains (Octahedral Base Geometry)

IB Chemistry VSEPR diagram showing octahedral arrangement with 6 electron domains.
Electron Domains Electron Domain Geometry Molecular Geometry Example
6 bonding pairs Octahedral Octahedral SF6
5 bonding + 1 lone pair Octahedral Square pyramidal BrF5
4 bonding + 2 lone pairs Octahedral Square planar XeF4

Drawing Lewis Structures and Visualizing Shape

When drawing Lewis structures for expanded octets:

Use dash-and-wedge diagrams to show 3D shape when helpful:

Summary
