Covalent Bonds and Lewis Formulas

Specification Reference S2.2.1

Quick Notes

  • A covalent bond is formed by the electrostatic attraction between a shared pair of electrons and the nuclei of the bonded atoms.
  • The octet rule: atoms tend to have 8 electrons in their valence shell (like noble gases).
  • Lewis structures (or electron dot structures) show:
    • Bonding pairs (shared electrons)
    • Lone pairs (non-bonding electrons)
  • Electron pairs can be represented using dots, crosses, or dashes.

Full Notes

What Is a Covalent Bond?

In a covalent bond, a pair of electrons is shared between two atoms.

The positively charged nuclei of both atoms get attracted to the shared pair of negatively charged electrons and this pulls them in closer together.

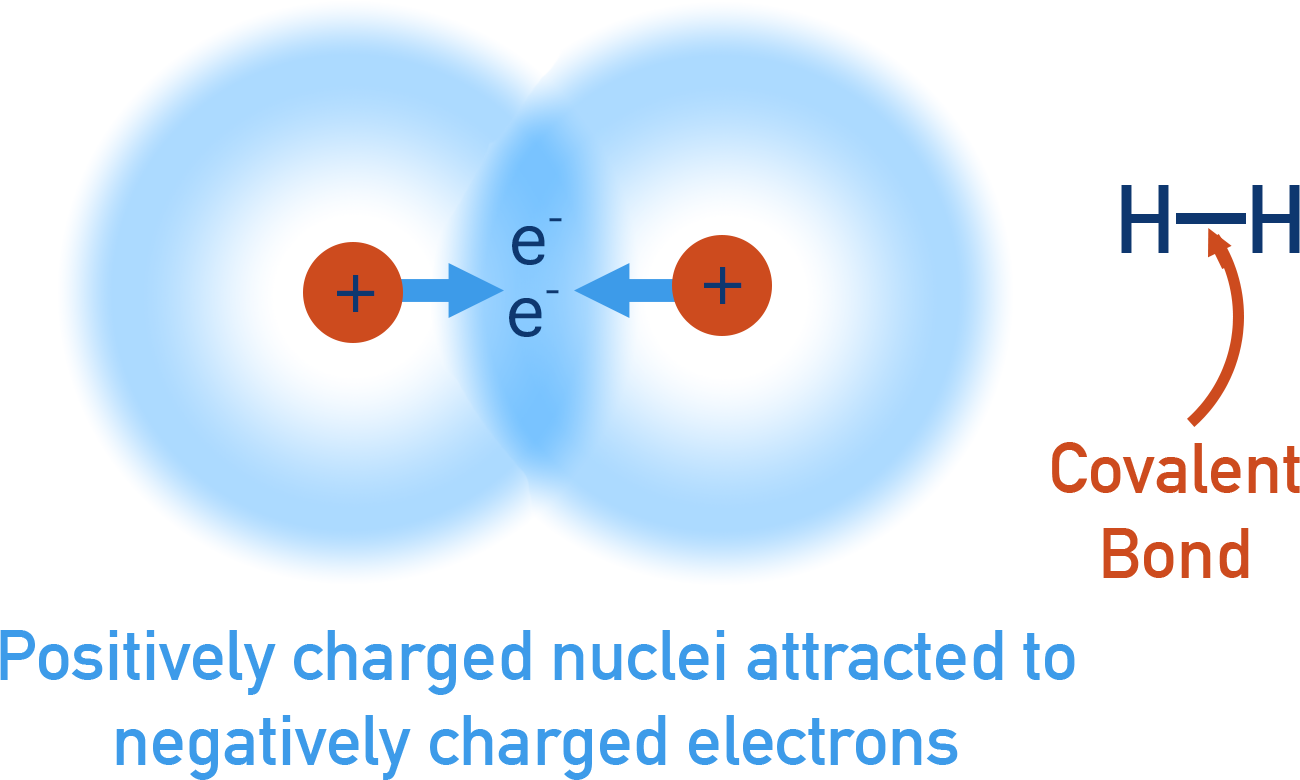

IB Chemistry diagram of covalent bonding showing nuclei attracting a shared pair of electrons.

The bond results from electrostatic attraction between the shared electrons and the positive nuclei of both atoms.

The Octet Rule

The octet rule describes how atoms (especially in Period 2) tend to gain, lose, or share electrons to achieve 8 electrons in their outer shell.

Note there are exceptions to this rule (such as for larger atoms).

Lewis Structures (Electron Dot Structures)

Lewis structures are diagrams used to how electrons are involved in the bonding between atoms. They show:

Electrons are represented as Dots (●).

Steps to draw a Lewis structure:

  1. Count total valence electrons around each atom.
  2. Connect atoms with single bonds (1 shared pair = 2 electrons).
  3. Distribute remaining electrons to complete octets.
  4. Use double or triple bonds if needed to meet the octet rule.

Examples of Lewis Structures

Molecules with single bonds (1 shared pair):

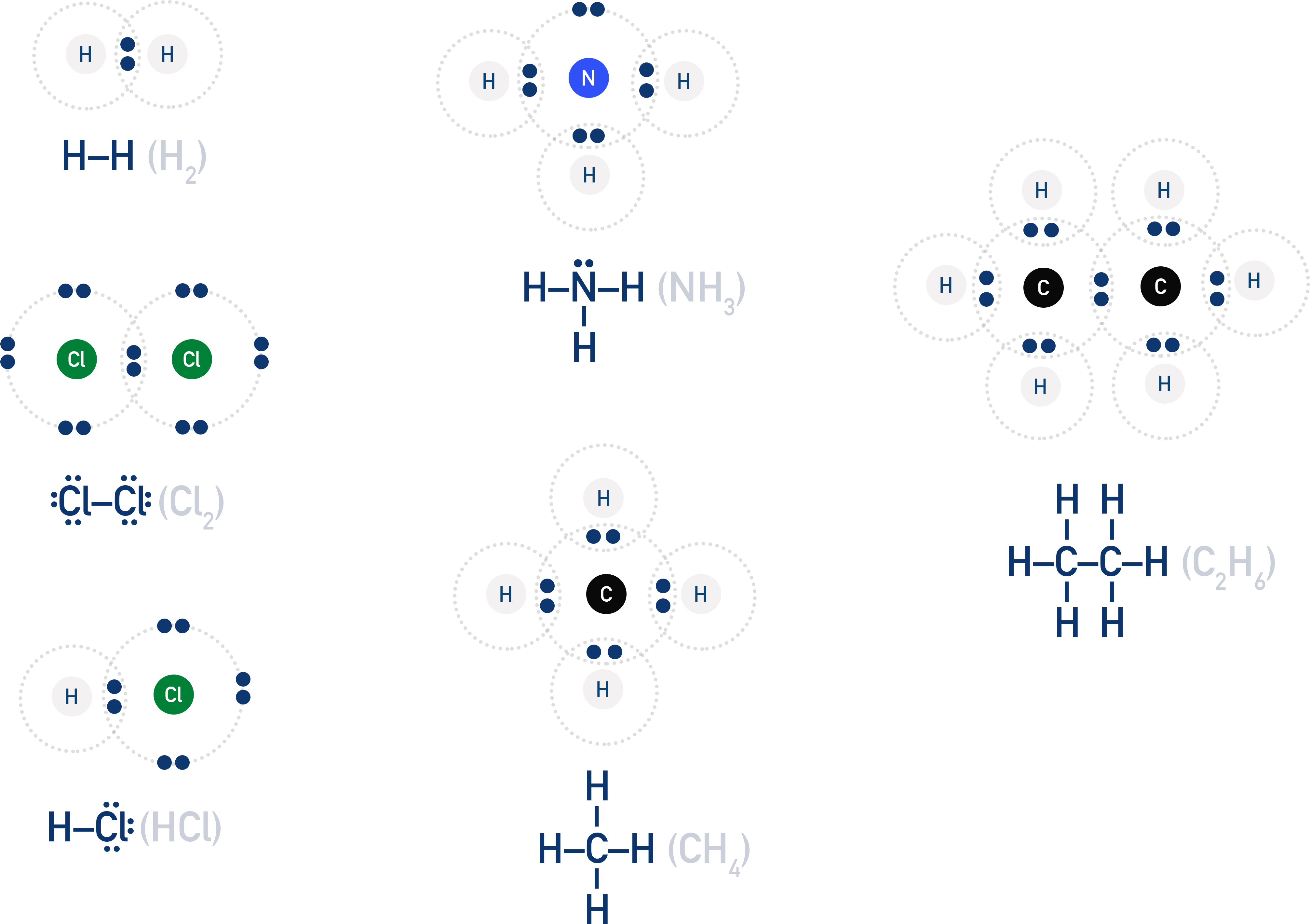

IB Chemistry examples of Lewis structures with single bonds including H2, Cl2, HCl, CH4, NH3 and C2H6.

Molecules with double bonds (2 shared pairs):

IB Chemistry examples of Lewis structures with double bonds including O2, CO2 and C2H4.

Lewis Structures with Fewer Than an Octet

Some atoms (mainly in Period 2) can be stable with less than 8 electrons.

For example:

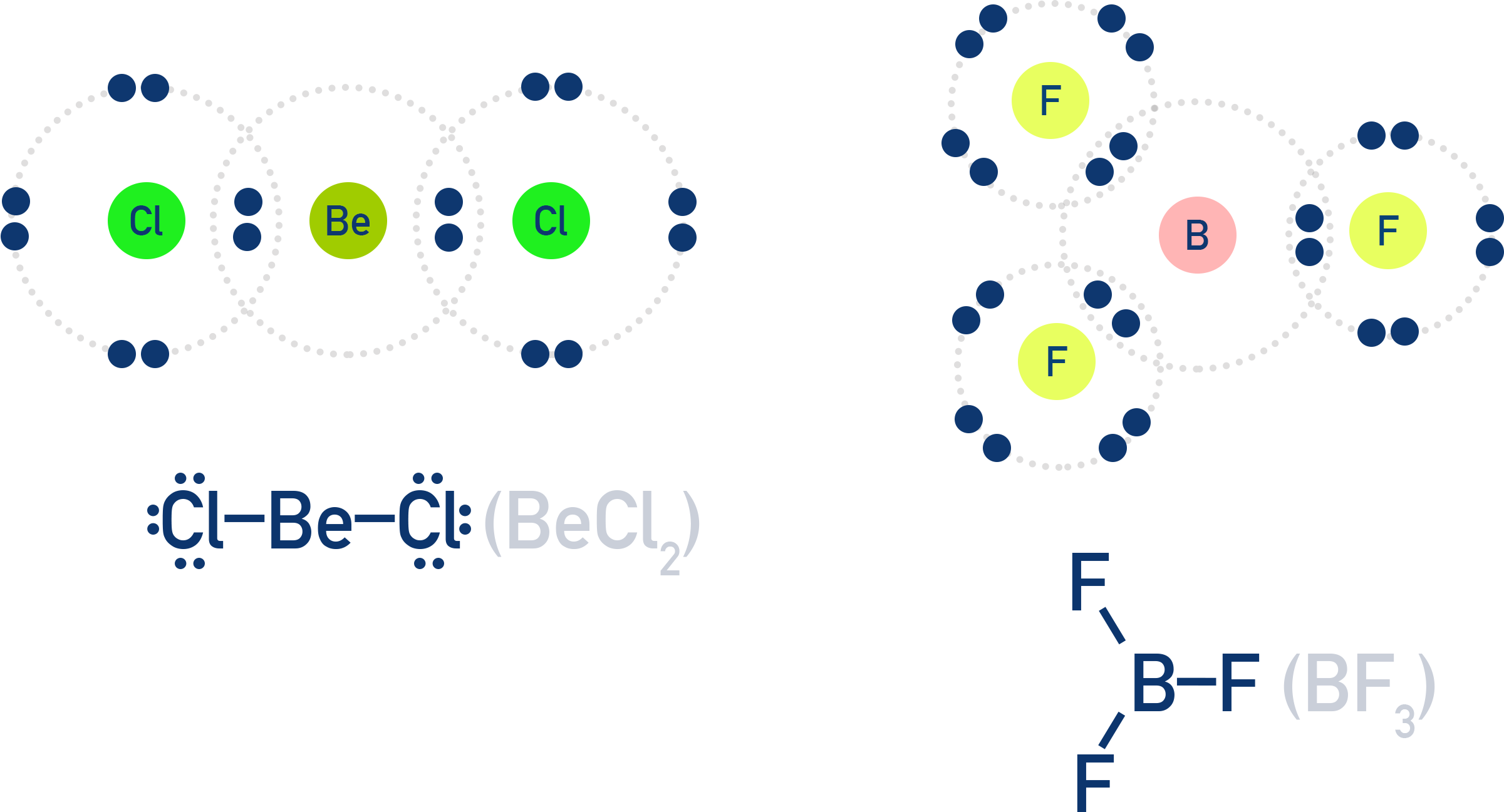

IB Chemistry examples of Lewis structures with incomplete octets including BeCl2 and BF3.

These are exceptions to the octet rule and should be recognised. Sometimes, bonded atoms can have more than 8 electrons in their outer shell (such as SF6), this is referred to as an expanded octet.
