Acid–Base Indicators HL Only

Specification Reference R3.1.14

Quick Notes

  • Indicators are weak acids that partially dissociate in water.
  • General formula: HInd ⇌ H+ + Ind
  • Colour changes depend on the relative amounts of HInd and Ind.
  • At pH = pKa:
    • [HInd] ≈ [Ind] and the colour is a mix of both forms.
  • The endpoint of a titration is close to the pKa of the indicator.
  • Universal indicator is a mixture of indicators, giving a wide pH colour range.

Full Notes

Indicators as Weak Acids

Acid–base indicators function through an equilibrium system:

HInd (aq) ⇌ H+ (aq) + Ind (aq)

As pH changes, the position of this equilibrium shifts, causing the colour to change:

pKa and Endpoint

The pKa of the indicator tells you the pH at which the colour change occurs.

When pH = pKa, the concentration of weak acid and conjugate base are equal.

Meaning [HInd] = [Ind], giving an equal mix of both colours.

Indicators are chosen so their pKa matches the equivalence point of the titration as closely as possible.

Choosing an Appropriate Indicator

The indicator must change colour close to the equivalence point of the titration.

Examples

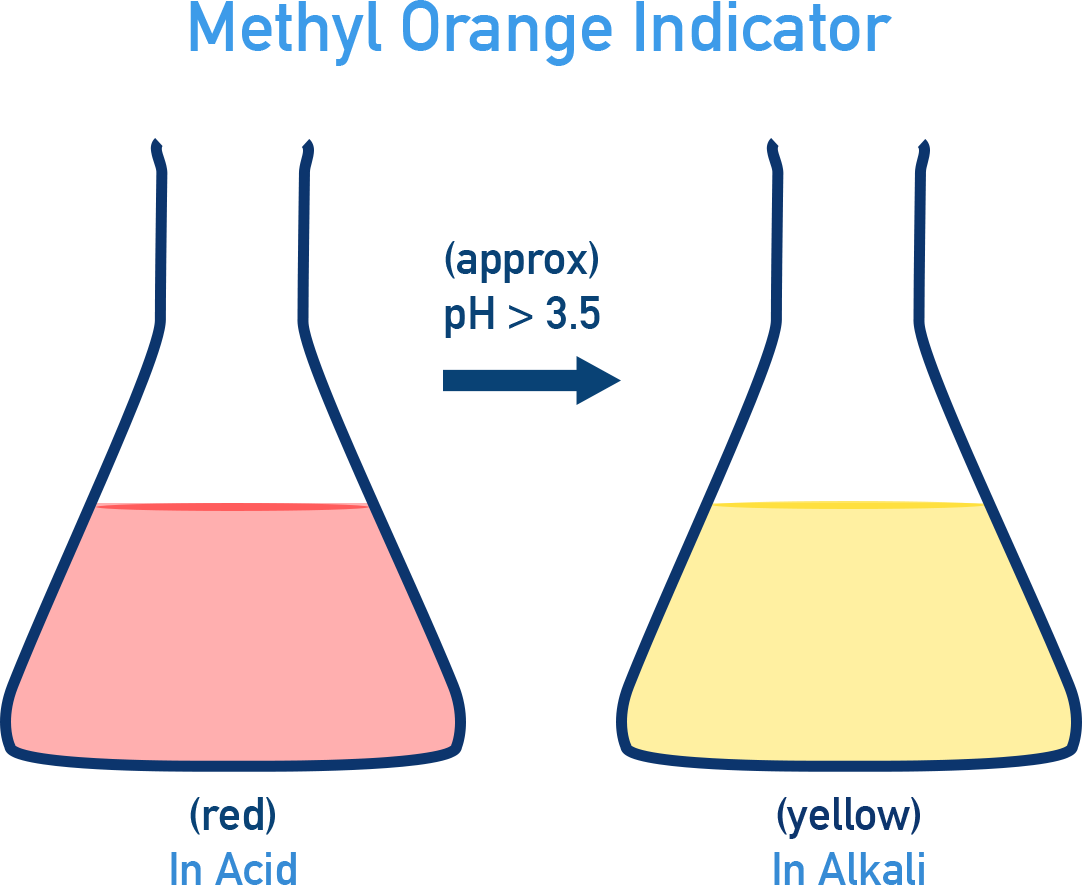

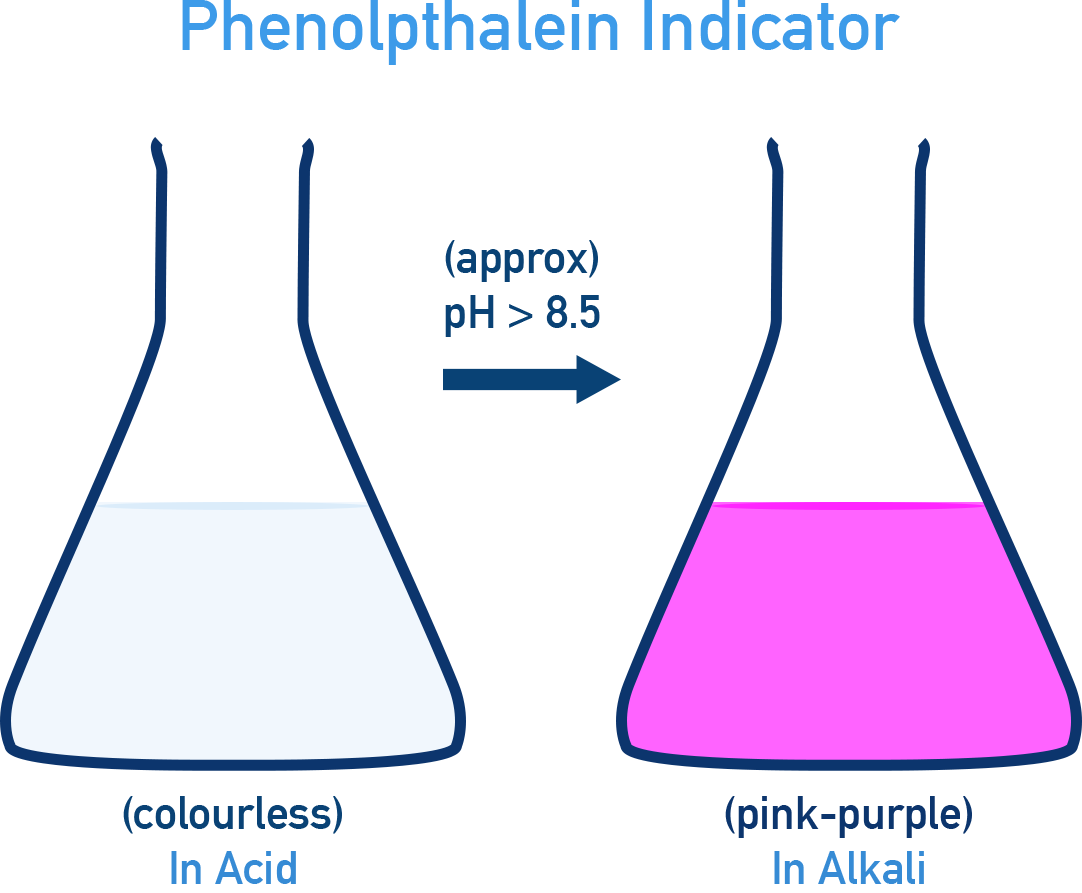

IB Chemistry diagram showing phenolphthalein indicator colour change between pH 8.3–10.0 from colourless to pink. IB Chemistry diagram showing methyl orange indicator colour change between pH 3.1–4.4 from red to yellow.

Universal Indicator

Universal indicator is a mixture of many indicators with different pKa values.

As each component changes colour at a different pH, a continuous colour gradient is produced from pH 1 to 14.

IB Chemistry diagram of the universal indicator colour chart showing pH 1 to 14.

Universal indicator is useful for estimating pH, but not suitable for precise titration endpoints.

Summary

Linked Course Question

Tool 1, Inquiry 2, Reactivity 3.2 — Linked Course Question

What are some of the similarities and differences between indicators used in acid–base titrations and in redox titrations?

Both give a colour change at the endpoint. Acid–base indicators rely on pH changes caused by changes in H+ ion concentration. Redox indicators rely on electron transfer and colour changes due to changes in oxidation state.
